SPI-130-xx SMD High Current Power Induvtor

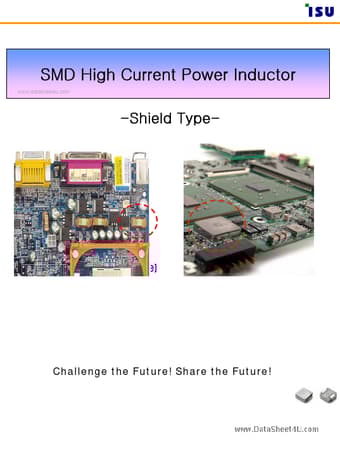

SMD High Current Power Inductor www.datasheet4u.com -Shield Type- SMD (Surface Mounting Device) Challenge the Future! Share the Future! SMD High Current Power Inductor (Shield) Advantage of SPI power inductor Low profile High current capability www.datasheet4u.com Low DCR Low temperature rise Increased thermal efficiency Low installing cost Reduced stray field emission Process 4.7uH ISU Ceramics 4.7uH ISU Ceramics Application Switcing-mode power supply High current DC-DC and AC-DC conv.

SPI-130-xx Features

* Shield construction Frequency range up to 5 MHz Lowest DCR/uH Low buzz noise Lead free 5. Dimensions [unit:mm] Land Pattern 3.8 3.5 8.0 3. Applications

* PDA/Notebook/Desktop/Server applications Low profile, high current power supplies Battery

SPI-130-xx Datasheet (417.46 KB)

Preview of SPI-130-xx PDF

Datasheet Details

Part number:

SPI-130-xx

Manufacturer:

ISU

File Size:

417.46 KB

Description:

Smd high current power induvtor.
