SPI-235-19 - Ultraminiature photointerrupter (single-transistor type)

Datasheet Summary

Features

  • GaAs Infrared LED plus Single Phototransistor.
  • Photo-Interrupter.
  • Contact type.
  • Compact type : H3.25 ! L5.0 ! W4.5mm Absolute Maximum Ratings at Ta=25°C, 65%RH Parameter Forward Current Reverse Voltage Power Dissipation Collector-Emitter Voltage Emitter-Collector Voltage Collector Curren Power Dissipation Operating Temperature Storage Temperature Soldering Temperature.
  • 1 Symbol IF VR PD VCEO VECO IC PC Topr Tstg Tsol Rating 50 5 70 20 5 20 70 -20 to +80.

📥 Download Datasheet

Datasheet preview – SPI-235-19

Datasheet Details

Part number SPI-235-19
Manufacturer Sanyo Semicon Device
File Size 37.62 KB
Description Ultraminiature photointerrupter (single-transistor type)
Datasheet download datasheet SPI-235-19 Datasheet
Additional preview pages of the SPI-235-19 datasheet.

📁 Similar Datasheet

  • SPI-070-xx - SMD High Current Power Induvtor (ISU)
  • SPI-100-xx - SMD High Current Power Induvtor (ISU)
  • SPI-130-50 - SMD High Current Power Induvtor (ISU)
  • SPI-130-xx - SMD High Current Power Induvtor (ISU)
  • SPI-315-xx - Photo Reflector (Sanyo)
  • SPI07N60C3 - Power Transistor (Infineon Technologies)
  • SPI07N60C3 - N-Channel MOSFET (INCHANGE)
  • SPI07N60S5 - Cool MOS Power Transistor (Infineon Technologies)
  • SPI07N60S5 - N-Channel MOSFET (INCHANGE)
  • SPI07N65C3 - Cool MOS Power Transistor (Infineon Technologies)
Other Datasheets by Sanyo Semicon Device
  • SPI-236-17 - Ultraminiature photointerrupter (single-transistor type)
  • SPI-238-18 - Ultraminiature photointerrupter (single-transistor type)
  • SPI-240-15-T1 - Ultraminiature photointerrupter supporting reflow soldering (Darlington-transistor type)
  • SPI-335-34 - Ultraminiature photoreflector (single-transistor type)
  • SPI-336-99-T1 - Ultraminiature photoreflector supporting reflow soldering Single transistor type

Full PDF Text Transcription

Click to expand full text

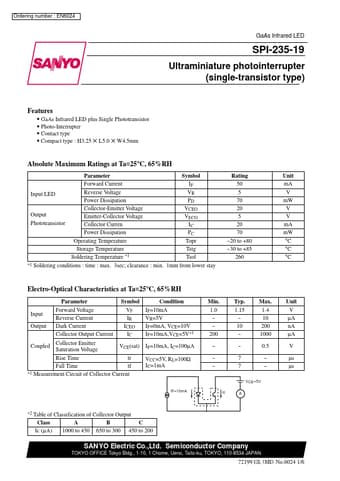

Ordering number : EN6024 SPI-235-19 GaAs Infrared LED SPI-235-19 Ultraminiature photointerrupter (single-transistor type) Features • GaAs Infrared LED plus Single Phototransistor • Photo-Interrupter • Contact type • Compact type : H3.25 ! L5.0 ! W4.5mm Absolute Maximum Ratings at Ta=25°C, 65%RH Parameter Forward Current Reverse Voltage Power Dissipation Collector-Emitter Voltage Emitter-Collector Voltage Collector Curren Power Dissipation Operating Temperature Storage Temperature Soldering Temperature *1 Symbol IF VR PD VCEO VECO IC PC Topr Tstg Tsol Rating 50 5 70 20 5 20 70 -20 to +80 -30 to +85 260 Unit mA V mW V V mA mW °C °C °C Input LED Output Phototransistor *1 Soldering conditions : time : max. 3sec; clearance : min.
