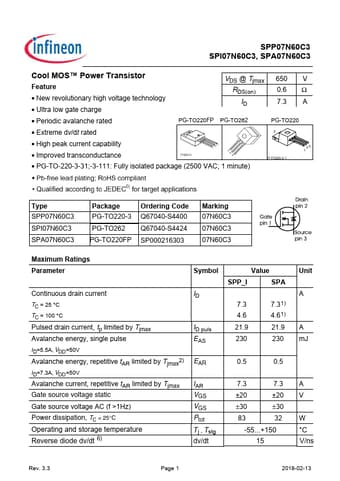

SPP07N60C3 SPI07N60C3, SPA07N60C3
Cool MOS™ Power Transistor
Feature • New revolutionary high voltage technology • Ultra low gate charge
VDS @ Tjmax 650 V
RDS(on)
0.6 Ω
ID
7.3 A
• Periodic avalanche rated
PG-TO220FP PG-TO262
PG-TO220
• Extreme dv/dt rated
2
• High peak current capability • Improved transconductance
1 23 P-TO220-3-31
P-TO220-3-1
23 1
• PG-TO-220-3-31;-3-111: Fully isolated package (2500 VAC; 1 minute)
Type SPP07N60C3 SPI07N60C3 SPA07N60C3
Package PG-TO220-3 PG-TO262 PG-TO220FP
Ordering Code Q67040-S4400 Q67040-S4424 SP000216303
Marking 07N60C3 07N60C3 07N60C3
Maximum Ratings Parameter
Continuous drain current
TC = 25 °C TC = 100 °C
Pulsed drain current, tp limited by Tjmax Avalanche energy, single pulse
ID=5.
