SPI08N80C3

N-Channel MOSFET

SPI08N80C3 Features

* Static drain-source on-resistance: RDS(on) ≤0.65Ω

* Enhancement mode

* Fast Switching Speed

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation

* DESCRIPTION

* High peak current capability

* Ultra low gate charge

SPI08N80C3 General Description


*High peak current capability
*Ultra low gate charge
*Ultra low effective capacitances
*ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 800 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 8 IDM Drain Current-Single Pulsed 24 .

SPI08N80C3 Datasheet (283.17 KB)

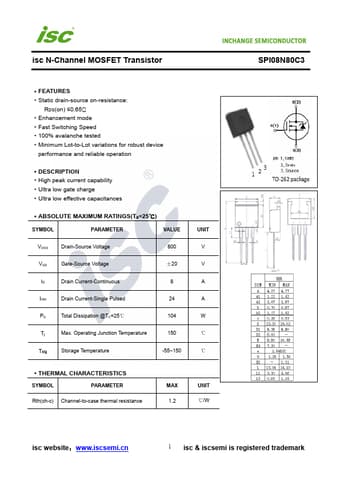

Preview of SPI08N80C3 PDF

Datasheet Details

Part number:

SPI08N80C3

Manufacturer:

INCHANGE

File Size:

283.17 KB

Description:

N-channel mosfet.
