SPI-240-15-T1 - Ultraminiature photointerrupter supporting reflow soldering (Darlington-transistor type)

Datasheet Summary

Features

GaAs Infrared LED plus Darlington Phototransistor.
Photo-Interrupter for reflow soldering.
Compact type : H4.95 ! L6.0 ! W5.5mm.
Taping type Absolute Maximum Ratings at Ta=25°C, 65%RH Parameter Forward Current Reverse Voltage Power Dissipation Collector-Emitter Voltage Emitter-Collector Voltage Collector Curren Power Dissipation Operating Temperature Storage Temperature Symbol IF VR PD VCEO VECO IC PC Topr Tstg Rating 50 5 70 20 5 20 70 -20 to +80 -30 to +85.

Datasheet Details

Part number	SPI-240-15-T1
Manufacturer	Sanyo Semicon Device
File Size	49.06 KB
Description	Ultraminiature photointerrupter supporting reflow soldering (Darlington-transistor type)
Datasheet	SPI-240-15-T1 Datasheet

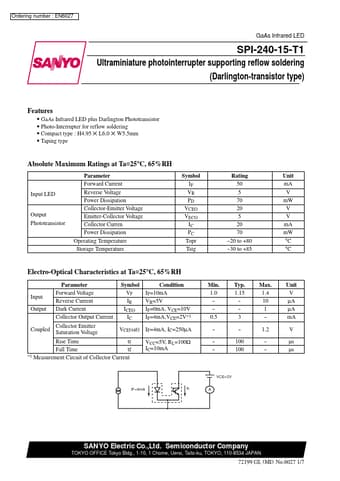

Additional preview pages of the SPI-240-15-T1 datasheet.

📁 Similar Datasheet

SPI-070-xx - SMD High Current Power Induvtor (ISU)

SPI-100-xx - SMD High Current Power Induvtor (ISU)

SPI-130-50 - SMD High Current Power Induvtor (ISU)

SPI-130-xx - SMD High Current Power Induvtor (ISU)

SPI-315-xx - Photo Reflector (Sanyo)

SPI07N60C3 - Power Transistor (Infineon Technologies)

SPI07N60C3 - N-Channel MOSFET (INCHANGE)

SPI07N60S5 - Cool MOS Power Transistor (Infineon Technologies)

SPI07N60S5 - N-Channel MOSFET (INCHANGE)

SPI07N65C3 - Cool MOS Power Transistor (Infineon Technologies)

Full PDF Text Transcription

Click to expand full text

Ordering number : EN6027 SPI-240-15-T1 GaAs Infrared LED SPI-240-15-T1 Ultraminiature photointerrupter supporting reflow soldering (Darlington-transistor type) Features • GaAs Infrared LED plus Darlington Phototransistor • Photo-Interrupter for reflow soldering • Compact type : H4.95 ! L6.0 ! W5.
