TDA02H0SK1R, TDA08H0SK1, (TDA0xxx) Ultra Miniature Surface Mount Half Pitch DIP Switches

C&K TDA Series Ultra-miniature Surface Mount Half-pitch DIP Switches .

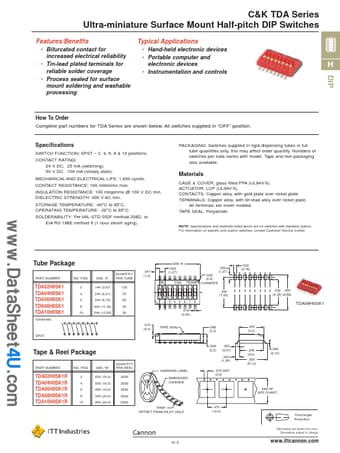

datasheet Preview Page 1 from Datasheet4u.com

TDA08H0SK1_ITT.pdf

TDA02H0SK1R Datasheet Preview — This datasheet PDF includes multiple part numbers: TDA02H0SK1R, TDA08H0SK1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TDA02H0SK1R, TDA08H0SK1

Manufacturer:

ITT

File Size:

45.16 KB

Description:

(TDA0xxx) Ultra Miniature Surface Mount Half Pitch DIP Switches

Note:

This datasheet PDF includes multiple part numbers: TDA02H0SK1R, TDA08H0SK1.
Please refer to the document for exact specifications by model.

Features

* Benefits
* Bifurcated contact for increased electrical reliability
* Tin-lead plated terminals for reliable solder coverage

Applications

* Hand-held electronic devices
* Portable computer and electronic devices
* Instrumentation and controls H DIP How To Order Complete part numbers for TDA Series are shown below. All switches supplied in “OFF” position. Specifications SWITCH FUNCTION: SPST
* 2, 4, 6
