TDA0319D DUAL VOLTAGE COMPARATOR

, Preliminary II TDA0319D II DUAL VOLTAGE COMPARATOR The TDA0319D consists of two independent precision high-speed comparators. It is designed to operate over a wide range of supply voltages down to a single 5 V logic supply and ground .. The uncommitted collector of the output stage makes the device compatible with DTL, TTL and C-MOS as well as capable of driving lamps and relays at currents up to 25 mAo The circuit is equivalent to the LM319, however it is mounted in a miniature plastic pac.

TDA0319D Features

* Two independent comparators

* Operates from a single 5 V supply

* Typically 80 ns response time at ±lS V

* Minimum fan-out of 2 TTL gates (each side)

* Maximum input current: 1 f1A

* Inputs and outputs can be insulated from system ground

* Hi

TDA0319D Datasheet (115.23 KB)

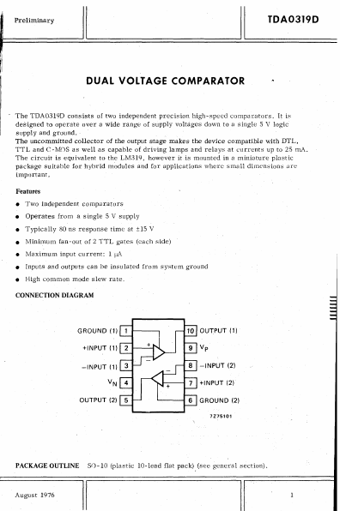

TDA0319D Datasheet Preview — Preview of TDA0319D PDF

Datasheet Details

Part number:

TDA0319D

Manufacturer:

Philips

File Size:

115.23 KB

Description:

Dual voltage comparator.
