TDA0741D OPERATIONAL AMPLIFIER

TDA0741D Description

TDA0741D II OPERATIONAL AMPLIFIER TheTDA0741D is a silicon monolithic integrated operational amplifier intended for use in hybrid modules and applic.

TDA0741D Features

* - n9 frequency compensation required - short-circuit protection - large input and output voltage range - offset voltage adjustable to zero Positive supply voltage Negative supply voltage QUICKREFERENCE DATA 15 V 15 V Characteristics at T amb = 25 °C Voltage gain at RL = 2 kQ; V0 = ±10 V Common

📥 Download Datasheet

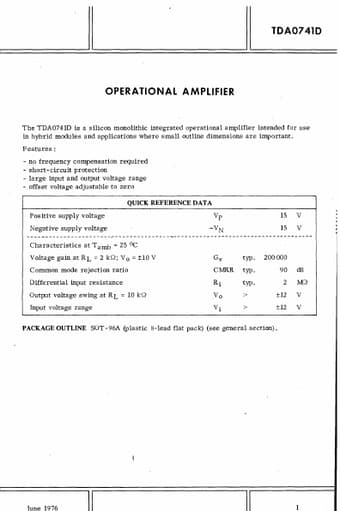

Preview of TDA0741D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA0741D
Manufacturer
Philips
File Size
108.76 KB
Datasheet
TDA0741D-Philips.pdf
Description
OPERATIONAL AMPLIFIER
