TDA0358D - DUAL OPERATIONAL AMPLIFIER

TDA0358D Description

.Preliminary TDA0358D II DUAL OPERATIONAL AMPLIFIER The TDA0358D consists of two independent, high gain, internally frequency compensated operationa.

TDA0358D Features

* Internally frequency compensated for unity gain
* Large d. c. voltage gain: 100 dB
* Unity gain bandwidth: 1 MHz
* Wide supply voltage range: 3 to 30 V
* Low supply current drain: 1 mW per op amp at Vp - VN== 5 V
* Differential input voltage range eq

📥 Download Datasheet

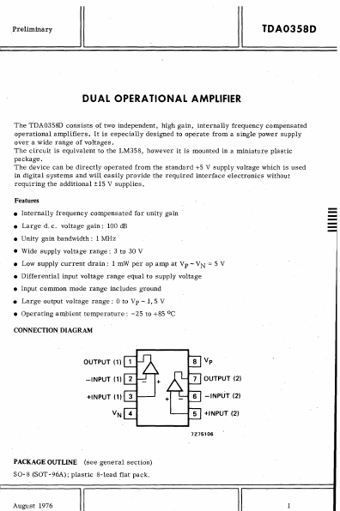

Preview of TDA0358D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA0358D
Manufacturer
Philips
File Size
89.00 KB
Datasheet
TDA0358D-Philips.pdf
Description
DUAL OPERATIONAL AMPLIFIER
