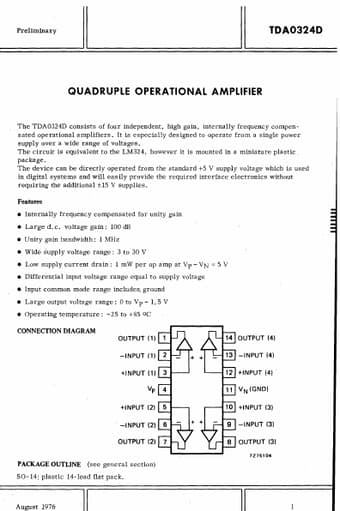

TDA0324D QUADRUPLE OPERATIONAL AMPLIFIER

Preliminary II -TDA0324D QUADRUPLE OPERATIONAL AMPLIFIER The TDA0324D consists of four independent, high gain, internally frequency compensated operational amplifiers. It is especially designed to operate from a single power supply over a wide range of voltages. The circuit is equivalent to the LM324, however it is mounted in a miniature plastic package. The device can be directly operated from the standard +5 V supply voltage which is used in digital systems and will easily provide the requi.

TDA0324D Features

* Internally frequency compensated for unity gain

* Large d. c. voltage gain: 100 dB

* Unity gain bandwidth: 1 MHz

* Wide supply voltage range: 3 to 30 V

* Low supply current drain: 1 mW per op amp at Vp - VN == 5 V

* Differential input voltage range e
