TST06AH00, TST02PA00 Datasheet - ITT

TST06AH00, TST02PA00, Cannon Trident Connector System

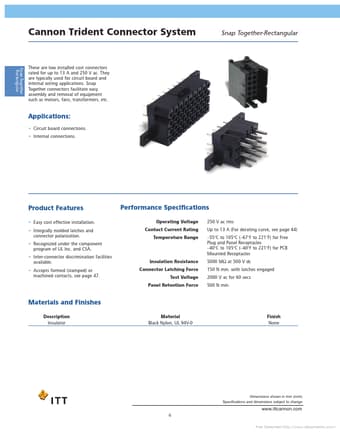

Cannon Trident Connector System Snap Together-Rectangular These are low installed cost connectors rated for up to 13 A and 250 V ac.They are typica.
Insulator Material Black Nylon, UL 94V-0 Finish None Dimensions shown in mm (inch) Specifications and dimensions subject to change www.

TST02PA00_ITT.pdf

TST06AH00 Datasheet Preview — This datasheet PDF includes multiple part numbers: TST06AH00, TST02PA00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TST06AH00, TST02PA00

Manufacturer:

ITT

File Size:

524.19 KB

Description:

Cannon Trident Connector System

Note:

This datasheet PDF includes multiple part numbers: TST06AH00, TST02PA00.
Please refer to the document for exact specifications by model.

Features

* Easy cost effective installation.
* Integrally molded latches and connector polarization.
* Recognized under the component program of UL Inc. and CSA.
* Inter-connector discrimination facilities available.
* Accepts formed (stamped) or machined contacts, see

Applications

* Snap Together connectors facilitate easy assembly and removal of equipment such as motors, fans, transformers, etc. Snap Together Rectangular Applications:
* Circuit board connections.
