IXGP16N60B2, IXGA16N60B2 Datasheet - IXYS Corporation

IXGP16N60B2 - HiPerFAST IGBT

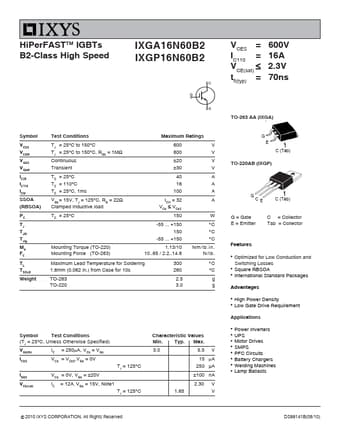

HiPerFASTTM IGBTs B2-Class High Speed IXGA16N60B2 IXGP16N60B2 VCES = IC110 = VCE(sat) ≤ tfi(typ) = 600V 16A 2.3V 70ns TO-263 AA (IXGA) Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Md FC TL TSOLD Weight www.DataSheet4U.net Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TJ = 125°C, RG = 22Ω Clamped Inductive load TC = 25°C Maximum Ratings 600 600 ±20 ±30 40 16 100 ICM = 32 VCE ≤ VC

IXGP16N60B2 Features

* z Maximum Lead Temperature for Soldering 1.6mm (0.062 in.) from Case for 10s TO-263 TO-220 z z Optimized for Low Conduction and Switching Losses Square RBSOA International Standard Packages Advantages z z High Power Density Low Gate Drive Requirement Applications z Symbol Test Conditions (TJ
