IXGP7N60B, IXGA7N60B, HiPerFAST IGBT

www.DataSheet4U.com HiPerFASTTM IGBT IXGA 7N60B IXGP 7N60B VCES IC25 VCE(sat) tfi = 600 V = 14 A = 2 V = 150 ns Symbol VCES VCGR VGES VGEM IC25 I.

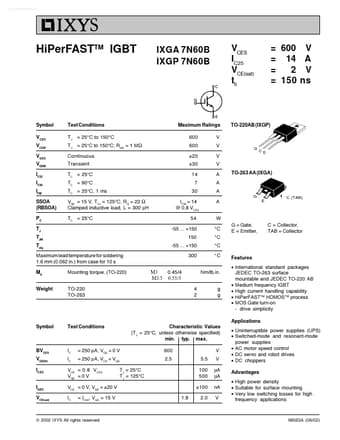

datasheet Preview Page 1 from Datasheet4u.com

IXGA7N60B_IXYSCorporation.pdf

IXGP7N60B Datasheet Preview — This datasheet PDF includes multiple part numbers: IXGP7N60B, IXGA7N60B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXGP7N60B, IXGA7N60B

Manufacturer:

IXYS Corporation

File Size:

99.87 KB

Description:

HiPerFAST IGBT

Note:

This datasheet PDF includes multiple part numbers: IXGP7N60B, IXGA7N60B.
Please refer to the document for exact specifications by model.

Features

* G = Gate, E = Emitter, E C (TAB) C = Collector, TAB = Collector Maximum lead temperature for soldering 1.6 mm (0.062 in. ) from case for 10 s Md Weight Mounting torque, (TO-220) TO-220 TO-263
* International standard packages JEDEC TO-263 surface mountable and JEDEC TO-220 AB
* M

Applications

* Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 600 2.5 5.5 100 500 ±100 1.8 2.0 V V µA µA nA V BVCES VGE(th) ICES IGES VCE(sat) IC IC = 250 µA, VGE = 0 V = 250 µA, VCE = VGE TJ = 25°C TJ = 125°C
* Uninterruptible power supplies (UPS
