IXUC120N10 - Trench Power MOSFET ISOPLUS220

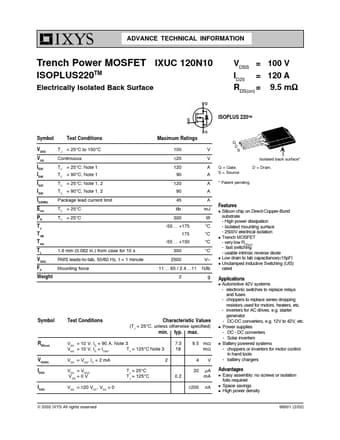

ADVANCE TECHNICAL INFORMATION Trench Power MOSFET IXUC 120N10 ISOPLUS220TM Electrically Isolated Back Surface VDSS = 100 V ID25 = 120 A RDS(on) = 9.5 mΩ ISOPLUS 220TM Symbol VDSS VGS ID25 ID90 IS25 IS90 ID(RMS) EAS PD TJ TJM Tstg TL VISOL FC Weight Test Conditions TJ = 25°C to 150°C Continuous TC = 25°C; Note 1 TC = 90°C, Note 1 TC = 25°C; Note 1, 2 TC = 90°C, Note 1, 2 Package lead current limit TC = 25°C TC = 25°C Maximum Ratings 100 ±20 120 90 120 90 45 tlb 300 -55 +175 175 -55 +150 V.

IXUC120N10 Features

* l Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation l Trench MOSFET - very low RDS(on) - fast switching - usable intrinsic reverse diode l Low drain to tab capacitance(
