VHFD16-16IO1 Half Controlled Single Phase Rectifier Bridge

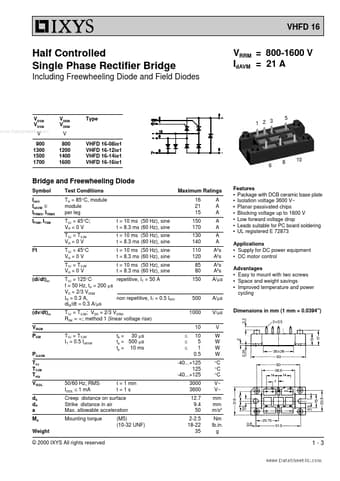

VHFD 16 Half Controlled Single Phase Rectifier Bridge Including Freewheeling Diode and Field Diodes VRRM = 800-1600 V IdAVM = 21 A VRSM VDSM www.DataSheet4U.com VRRM VDRM V 800 1200 1400 1600 Type 3 1 2 5 V 900 1300 1500 1700 VHFD 16-08io1 VHFD 16-12io1 VHFD 16-14io1 VHFD 16-16io1 6 8 10 Bridge and Freewheeling Diode Symbol IdAV IdAVM x IFRMS, ITRMS IFSM, ITSM Test Conditions TH = 85°C, module module per leg TVJ = 45°C; VR = 0 V TVJ = TVJM VR = 0 V I2t TVJ = 45°C VR = 0 V TVJ = TVJ.

VHFD16-16IO1 Features

* Package with DCB ceramic base plate Isolation voltage 3600 V~ Planar passivated chips Blocking voltage up to 1600 V Low forward voltage drop Leads suitable for PC board soldering UL registered E 72873 q q q q q q q Applications Supply for DC power equipment DC motor control q q q q q TVJ = 125°C
