VHFD16

Half Controlled Single Phase Rectifier Bridge

VHFD16 Features

* Package with DCB ceramic base plate Isolation voltage 3600 V~ Planar passivated chips Blocking voltage up to 1600 V Low forward voltage drop Leads suitable for PC board soldering UL registered E 72873 q q q q q q q Applications Supply for DC power equipment DC motor control q q q q q TVJ = 125°C

VHFD16 Datasheet (119.40 KB)

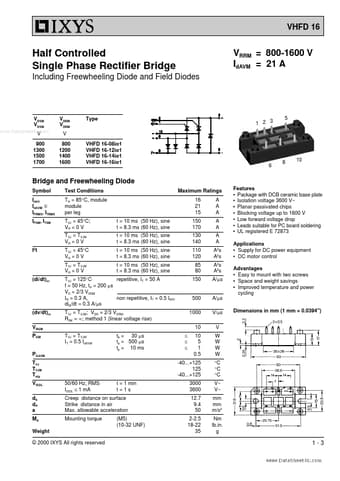

Preview of VHFD16 PDF

Datasheet Details

Part number:

VHFD16

Manufacturer:

IXYS Corporation

File Size:

119.40 KB

Description:

Half controlled single phase rectifier bridge.
VHFD 16 Half Controlled Single Phase Rectifier Bridge Including Freewheeling Diode and Field Diodes VRRM = 800-1600 V IdAVM = 21 A VRSM VDSM www.Da.
