CLA40E1200NHB - High Efficiency Thyristor

IXYS

CLA40E1200NHB Datasheet Preview — Preview of CLA40E1200NHB PDF

Datasheet Details

Part number	CLA40E1200NHB
Manufacturer	IXYS
File Size	399.77 KB
Description	High Efficiency Thyristor
Datasheet	CLA40E1200NHB-IXYS.pdf

CLA40E1200NHB Product details

Description

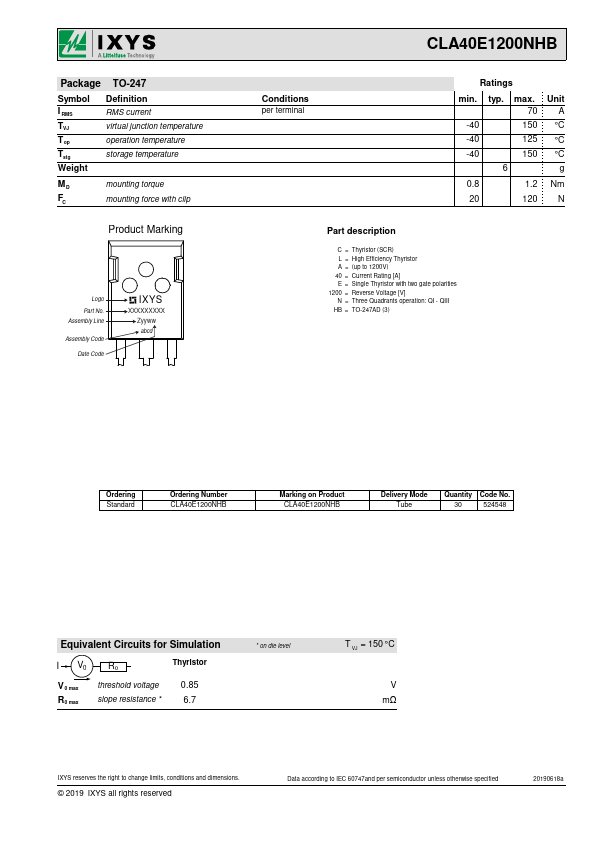

C = Thyristor (SCR) L = High Efficiency Thyristor A = (up to 1200V) 40 = Current Rating [A] E = Single Thyristor with two gate polarities 1200 = Reverse Voltage [V] N = Three Quadrants operation: QI - QIII HB = TO-247AD (3) Ordering Standard Ordering Number CLA40E1200NHB Marking on Product CLA40E1200NHB Delivery Mode Tube Quantity Code No.30 524548 Equivalent Circ

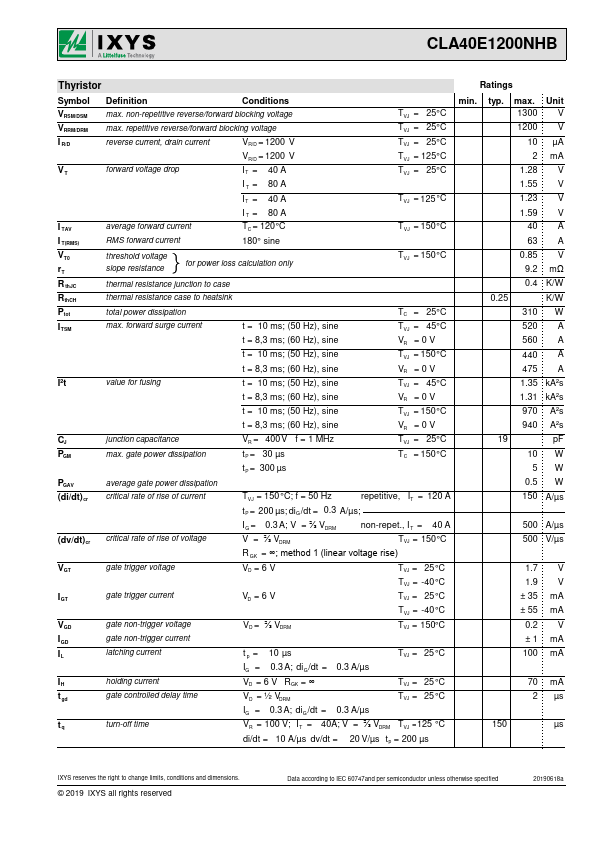

Features

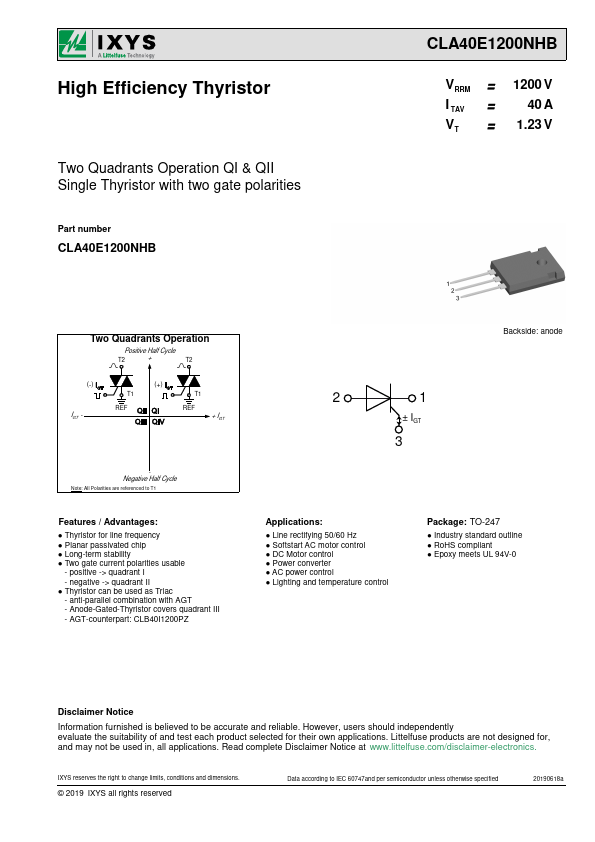

/ Advantages:.
Thyristor for line frequency.
Planar passivated chip.
Long-term stability.
Two gate current polarities usable - positive -> quadrant I - negative -> quadrant II.
Thyristor can be used as Triac - anti-parallel combination with AGT - Anode-Gated-Thyristor covers quadrant III - AGT-counterpart: CLB40I1200PZ 2 1 ± IGT 3 Backside: anode.
