CLA100E1200KB

High Efficiency Thyristor

IXYS

CLA100E1200KB Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Lighting and temperature control Package:

CLA100E1200KB General Description

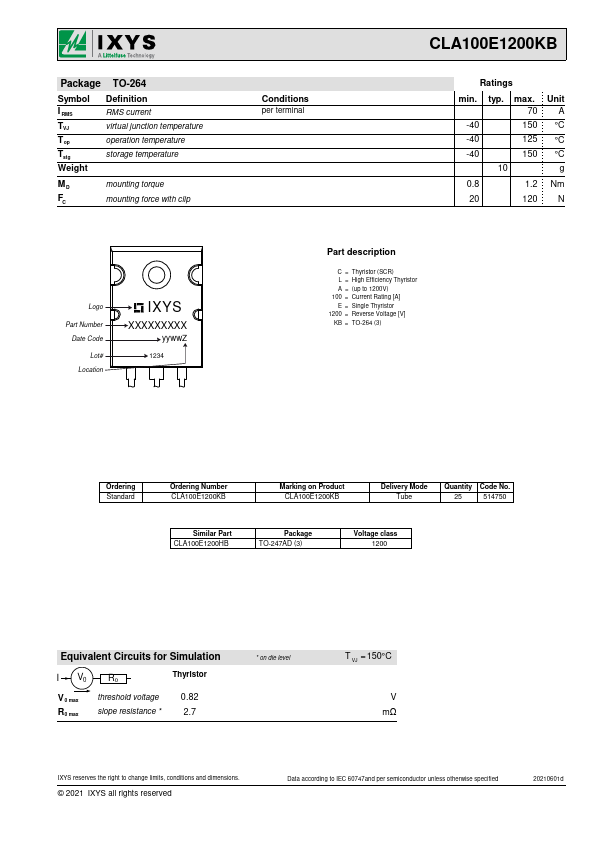

C = Thyristor (SCR) L = High Efficiency Thyristor A = (up to 1200V) 100 = Current Rating [A] E = Single Thyristor 1200 = Reverse Voltage [V] KB = TO-264 (3) Ordering Standard Ordering Number CLA100E1200KB Marking on Product CLA100E1200KB Delivery Mode Tube Quantity Code No. 25 514750 Similar.

CLA100E1200KB Datasheet (350.41 KB)

CLA100E1200KB Datasheet Preview — Preview of CLA100E1200KB PDF

Datasheet Details

Part number:

CLA100E1200KB

Manufacturer:

IXYS

File Size:

350.41 KB

Description:

High efficiency thyristor.

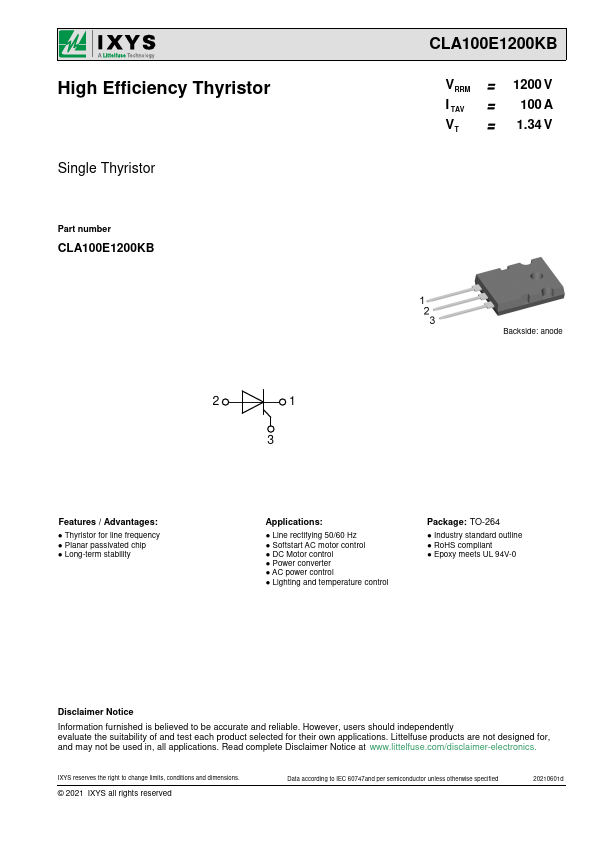

High Efficiency Thyristor Single Thyristor Part number CLA100E1200KB CLA100E1200KB VRRM = 1200 V I TAV = 100 A VT = 1.34 V 2 1 3 Backside: a.
