CLA100PD1200NA

High Efficiency Thyristor

CLA100PD1200NA Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Lighting and temperature control Package:

CLA100PD1200NA Datasheet (713.20 KB)

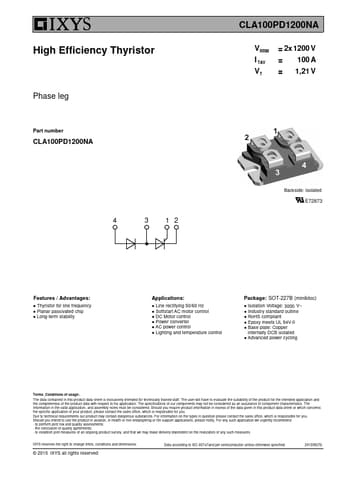

Preview of CLA100PD1200NA PDF

Datasheet Details

Part number:

CLA100PD1200NA

Manufacturer:

IXYS

File Size:

713.20 KB

Description:

High efficiency thyristor.
High Efficiency Thyristor Phase leg Part number CLA100PD1200NA 4 3 12 CLA100PD1200NA VRRM I TAV VT = 2x 1200 V = 100 A = 1,21 V Backside: Isolated.
