CLA20EF1200PZ Datasheet - IXYS

CLA20EF1200PZ High Efficiency Thyristor

C = Thyristor (SCR) L = High Efficiency Thyristor A = (up to 1200V) 20 = Current Rating [A] EF = Single Reverse Conducting Thyristor 1200 = Reverse Voltage [V] PZ = TO-263AB (D2Pak) (2HV) Ordering Standard Alternative Ordering Number CLA20EF1200PZ-TRL CLA20EF1200PZ-TUB Similar Part CLA20EF1200PB .

CLA20EF1200PZ Features

* / Advantages:

* Thyristor for fast turn-on switching

* Integrated free wheeling diode

* Planar passivated chip

* Long-term stability Applications:

* Ignition for HD lamps

* Capacity discharge Package: TO-263 (D2Pak-HV)

* Industry standard outline

* RoHS compliant

CLA20EF1200PZ Datasheet (409.63 KB)

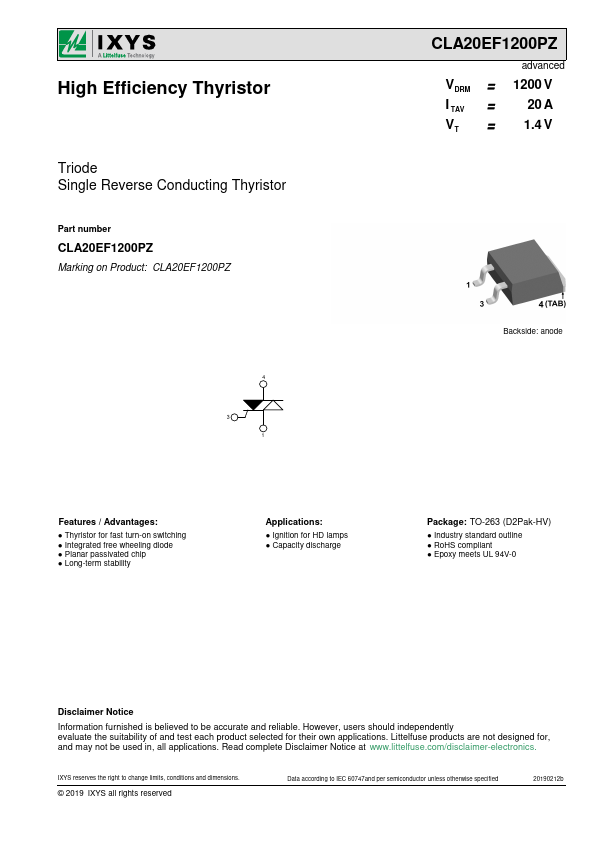

Preview of CLA20EF1200PZ PDF

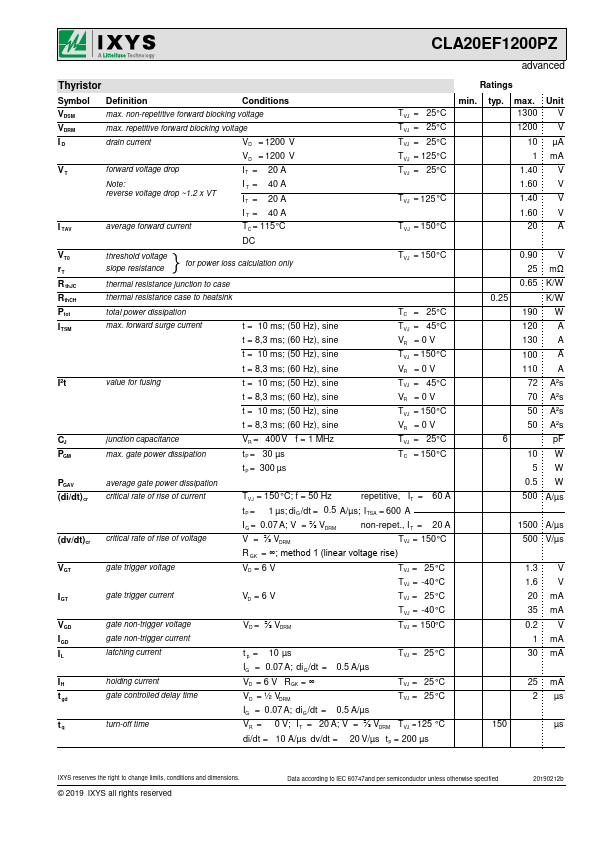

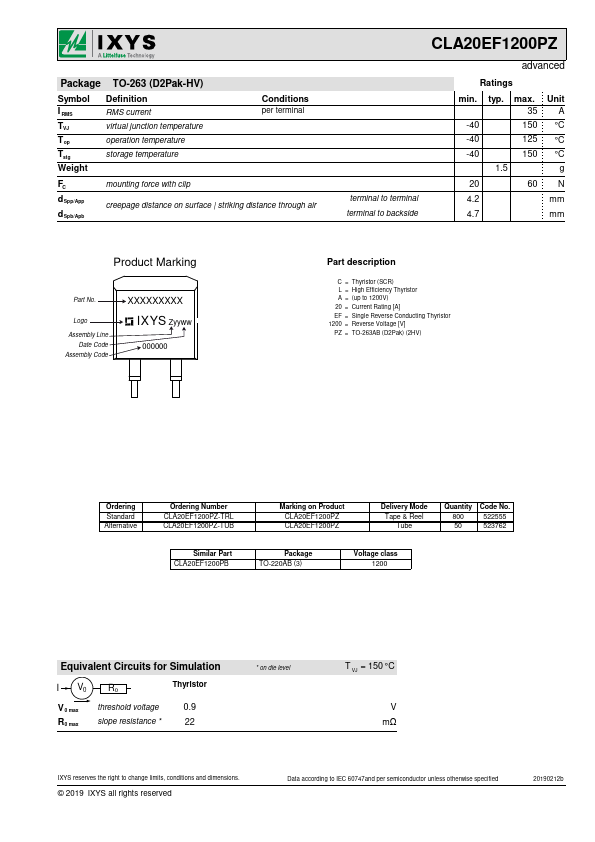

CLA20EF1200PZ Datasheet Preview Page 2 CLA20EF1200PZ Datasheet Preview Page 3

Datasheet Details

Part number:

CLA20EF1200PZ

Manufacturer:

IXYS

File Size:

409.63 KB

Description:

High efficiency thyristor.
