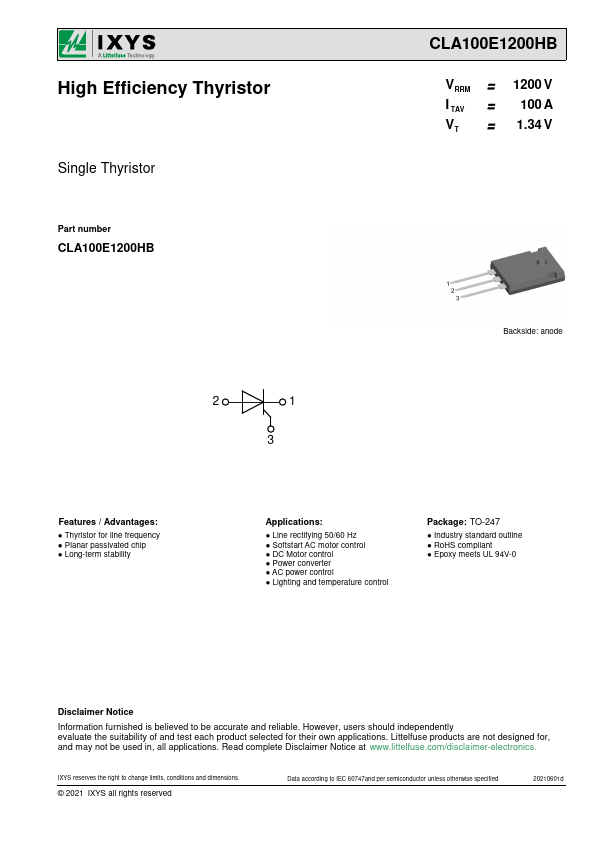

CLA100E1200HB

High Efficiency Thyristor

CLA100E1200HB Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Lighting and temperature control Package:

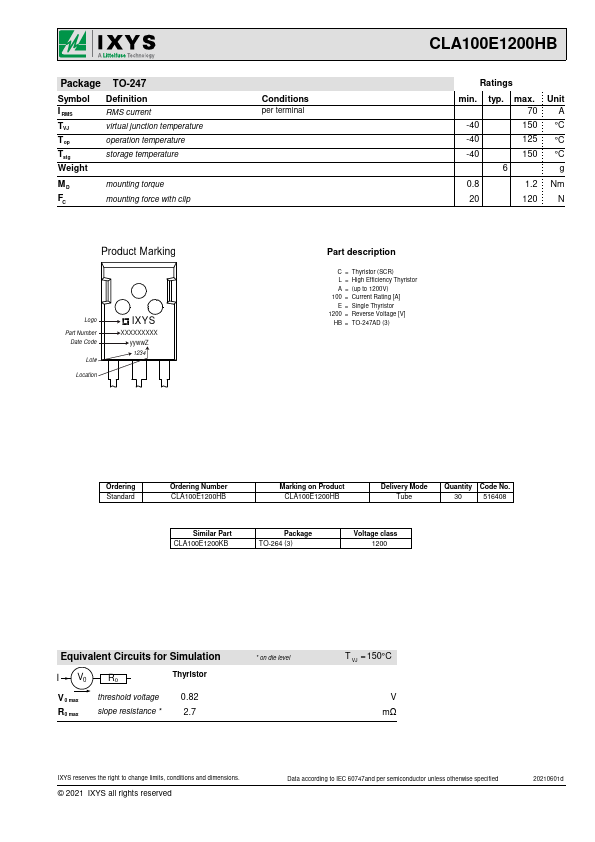

CLA100E1200HB General Description

C = Thyristor (SCR) L = High Efficiency Thyristor A = (up to 1200V) 100 = Current Rating [A] E = Single Thyristor 1200 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number CLA100E1200HB Marking on Product CLA100E1200HB Delivery Mode Tube Quantity Code No. 30 516408 Simil.

CLA100E1200HB Datasheet (377.31 KB)

Preview of CLA100E1200HB PDF

Datasheet Details

Part number:

CLA100E1200HB

Manufacturer:

IXYS

File Size:

377.31 KB

Description:

High efficiency thyristor.
High Efficiency Thyristor Single Thyristor Part number CLA100E1200HB CLA100E1200HB VRRM = 1200 V I TAV = 100 A VT = 1.34 V 2 1 3 Backside: a.
