CLA100E1200TZ Datasheet - IXYS

High Efficiency Thyristor

CLA100E1200TZ Features

* / Advantages:

* Thyristor for line frequency

* Planar passivated chip

* Long-term stability Applications:

* Line rectifying 50/60 Hz

* Softstart AC motor control

* DC Motor control

* Power converter

* AC power control

* Lighting and temperature control Package:

CLA100E1200TZ General Description

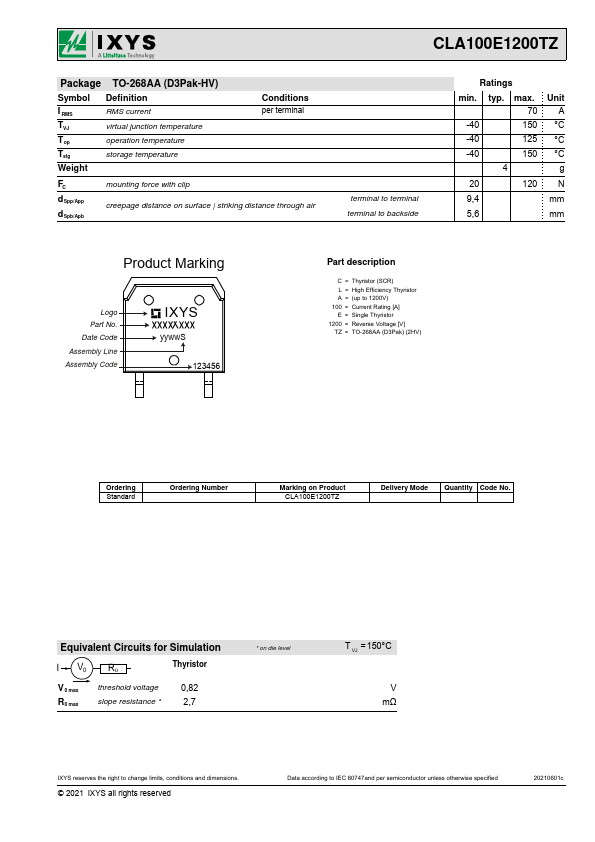

C = Thyristor (SCR) L = High Efficiency Thyristor A = (up to 1200V) 100 = Current Rating [A] E = Single Thyristor 1200 = Reverse Voltage [V] TZ = TO-268AA (D3Pak) (2HV) Ordering Standard Ordering Number Marking on Product CLA100E1200TZ Delivery Mode Quantity Code No. Equivalent Circuits for Sim.

CLA100E1200TZ Datasheet (143.97 KB)

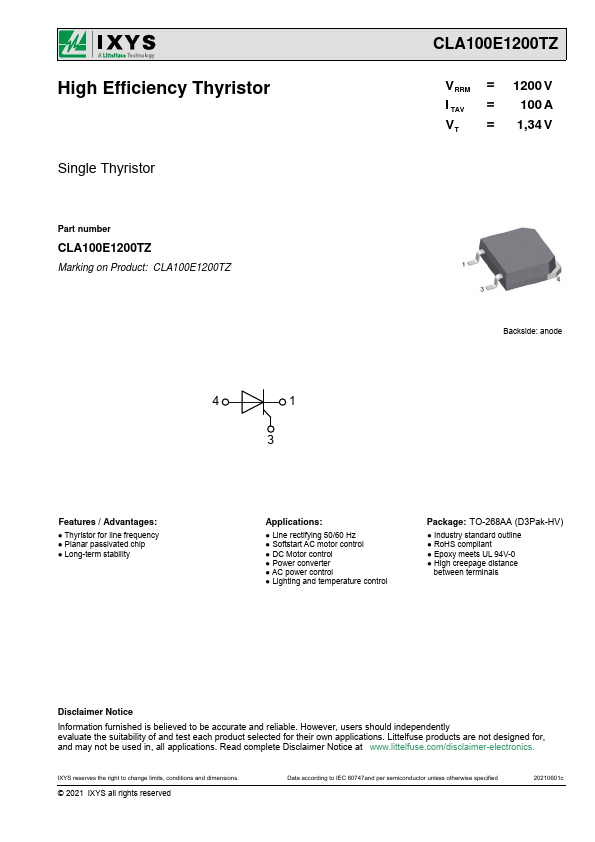

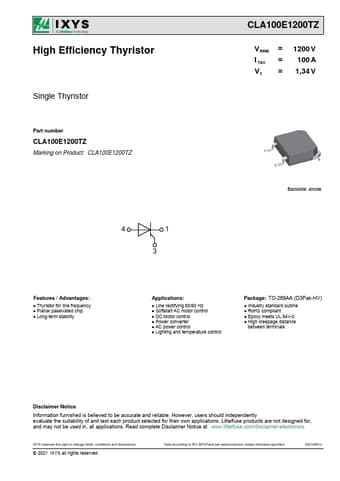

CLA100E1200TZ Datasheet Preview — Preview of CLA100E1200TZ PDF

Datasheet Details

Part number:

CLA100E1200TZ

Manufacturer:

IXYS

File Size:

143.97 KB

Description:

High efficiency thyristor.
High Efficiency Thyristor Single Thyristor Part number CLA100E1200TZ Marking on Product: CLA100E1200TZ 4 1 3 CLA100E1200TZ VRRM = I TAV = VT .
