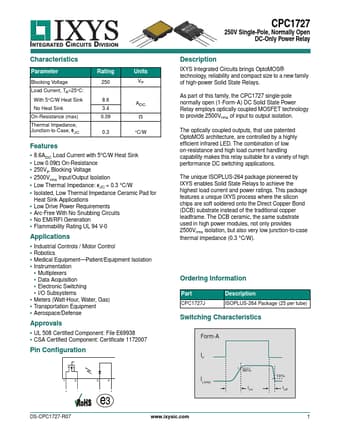

CPC1727 Datasheet, Relay, IXYS

CPC1727 Features

• Relay
• 8.6ADC Load Current with 5°C/W Heat Sink
• Low 0.09 On-Resistance
• 250VP Blocking Voltage
• 2500Vrms Input/Output Isolation
• Low Thermal Imp

PDF File Details

Part number:

CPC1727

Manufacturer:

IXYS

File Size:

170.30kb

Download:

📄 Datasheet

Description:

Normally open dc-only power relay. IXYS Integrated Circuits brings OptoMOS® technology, reliability and compact size to a new family of high-power Solid State Relays. A

CPC1727 Application

• Applications
• Low Drive Power Requirements
• Arc-Free With No Snubbing Circuits
• No EMI/RFI Generation
• Flammabil
