CPC7524BTR, CPC7524 - Analog Switch Array

CPC7524BTR Description

INTEGRATED CIRCUITS DIVISION CPC7524 Quad High Voltage Isolated Analog Switch Array .
The CPC7524 Quad High Voltage (HV) isolated Analog Switch Array builds upon our high voltage design and fabrication expertise for offline and telecom.

CPC7524BTR Features

* Switch Voltage up to 600V
* 110dB Switch-to-Switch Isolation at 5kHz
* Flexible Switch Configurations
* Smart Logic for Power-Up/Hot-Plug State Control
* 3.3V Operation with Very Low Power Consumption
* Switch Current Limiting and Thermal Shutdown Pr

CPC7524BTR Applications

* Instrumentation
* Industrial Controls and Monitoring
* Worldwide AC Mains Monitor
* Automatic Test Equipment (ATE)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CPC7524BTR, CPC7524. Please refer to the document for exact specifications by model.

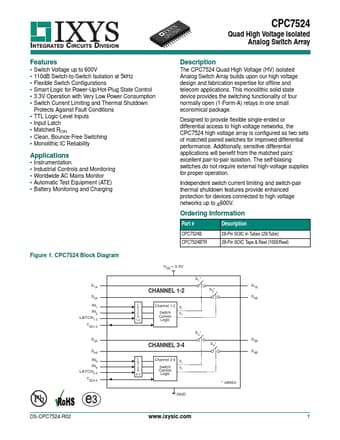

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CPC7524BTR, CPC7524
Manufacturer
IXYS
File Size
213.89 KB
Datasheet
CPC7524-IXYS.pdf
Description
Analog Switch Array
Note
This datasheet PDF includes multiple part numbers: CPC7524BTR, CPC7524.
Please refer to the document for exact specifications by model.
