CPC75282KATR

Line Card Access Switch

CPC75282KATR Features

* Improved Switch dV/dt Immunity of 1500V/s

* Smart logic for power-up/hot-plug state control

* Small 44-pin TQFP Package

* Monolithic IC reliability

* Low, matched RON

* Eliminates the need for zero-cross switching

* Flexible switch timing to

CPC75282KATR General Description

The CPC75282 Dual Line Card Access Switch (LCAS), a member of IXYS Integrated Circuits Division’s next generation Line Card Access Switch family, is a monolithic solid state device that provides the switching functionality of four 2-Form-C relays in a single, small, economical package. The CPC75282 .

CPC75282KATR Datasheet (304.07 KB)

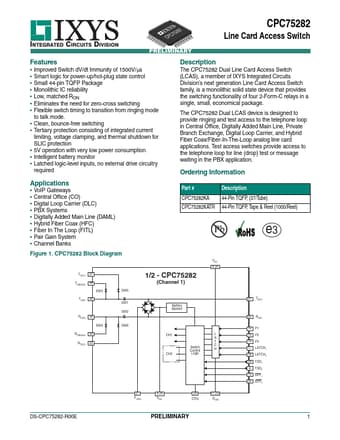

Preview of CPC75282KATR PDF

Datasheet Details

Part number:

CPC75282KATR

Manufacturer:

IXYS

File Size:

304.07 KB

Description:

Line card access switch.
