CYG2218 Datasheet - IXYS

CYG2218 - Cybergate DAA

IXYS Integrated Circuits Division’s Cybergate™ CYG2218 DAA module provides a complete telephone line interface circuit featuring 0dB insertion loss.

It includes a 2-4 wire converter for transmit and receive signal separation in a small 1.07" x 1.07" x 0.4" package.

The module provides a fast and cos

CYG2218 Features

* Zero Insertion Loss

* Low Distortion Transformer Signal Coupling (0.01% max)

* Complete Ring Detector Circuit

* Low Power Hook Switch

* Electronic Inductor/Gyrator Circuit

* Solid State Surge Protection

* Transient Protection Zener Diodes

CYG2218-IXYS.pdf

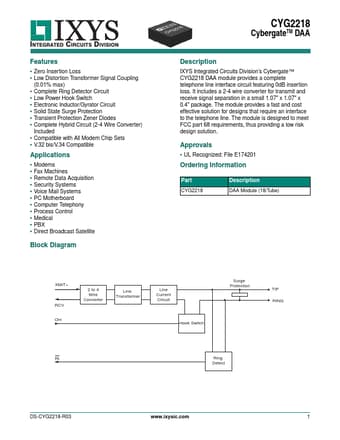

Preview of CYG2218 PDF
CYG2218 Datasheet Preview Page 2 CYG2218 Datasheet Preview Page 3

Datasheet Details

Part number:

CYG2218

Manufacturer:

IXYS

File Size:

117.64 KB

Description:

Cybergate daa.
