CYG2320 - Cybergate DAA

IXYS

The CYG2320 by IXYS is a Cybergate DAA. Below is the official datasheet preview.

📥 Download Datasheet

CYG2320 Cybergate DAA by IXYS - Datasheet Preview — Official preview page of the **CYG2320** Cybergate DAA datasheet (IXYS).

Datasheet Details

Part number	CYG2320
Manufacturer	IXYS
File Size	131.74 KB
Description	Cybergate DAA
Datasheet	CYG2320-IXYS.pdf

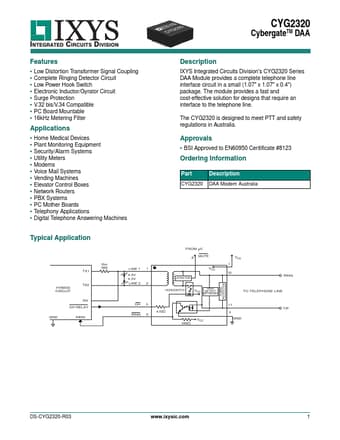

Additional preview pages of the CYG2320 datasheet.

CYG2320 Product details

Description

IXYS Integrated Circuits Division's CYG2320 Series DAA Module provides a complete telephone line interface circuit in a small (1.07" x 1.07" x 0.4") package. BSI Approved to EN60950 Ceritificate #8123 Ordering Information Part Description CYG2320 DAA Modem Australia Typical Application TX

Features

Low Distortion Transformer Signal Coupling.
Complete Ringing Detector Circuit.
Low Power Hook Switch.
Electronic Inductor/Gyrator Circuit.
Surge Protection.
V.32 bis/V.34 Compatible.
PC Board Mountable.
16kHz Metering Filter.
