CYG2217 Cybergate DAA

IXYS Integrated Circuits Division’s Cybergate™ CYG2217 DAA module provides a complete telephone line interface circuit including a 2-4 wire converter for transmit and receive signal separation in a small 1.07" x 1.07" x 0.4" package. The module provides a fast and cost effective solution for designs.

CYG2217 Features

* Low Distortion Transformer Signal Coupling (0.01% max)

* Complete Ring Detector Circuit

* Low Power Hook Switch

* Electronic Inductor/Gyrator Circuit

* Solid State Surge Protection

* Transient Protection Zener Diodes

* Complete Hybrid Circuit

CYG2217 Datasheet (117.78 KB)

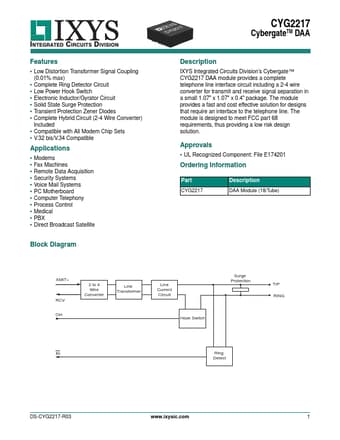

CYG2217 Datasheet Preview — Preview of CYG2217 PDF

Datasheet Details

Part number:

CYG2217

Manufacturer:

IXYS

File Size:

117.78 KB

Description:

Cybergate daa.
