CYG2001 - Cybergate

Clare Inc.

The CYG2001 by Clare Inc. is a Cybergate. Below is the official datasheet preview.

📥 Download Datasheet

CYG2001 Cybergate by Clare Inc. - Datasheet Preview — Official preview page of the **CYG2001** Cybergate datasheet (Clare Inc.).

Datasheet Details

Part number	CYG2001
Manufacturer	Clare Inc.
File Size	71.00 KB
Description	Cybergate
Datasheet	CYG2001_ClareInc..pdf

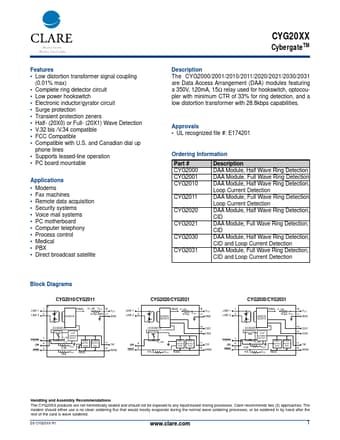

Additional preview pages of the CYG2001 datasheet.

CYG2001 Product details

Description

The CYG2000/2001/2010/2011/2020/2021/2030/2031 are Data Access Arrangement (DAA) modules featuring a 350V, 120mA, 15Ω relay used for hookswitch, optocoupler with minimum CTR of 33% for ring detection, and a low distortion transformer with 28.8kbps capabilities. UL recognized file #: E174201 Ordering Information Part # CYG2000 CYG2001 CYG2010 CYG2011 CYG2020 CYG2021 CYG2030 CYG2031 Description DAA Module, Half Wave Ring Detection DAA Module, Full Wave Ring Detection DAA Modu

Features

Low distortion transformer signal coupling (0.01% max).
Complete ring detector circuit.
Low power hookswitch.
Electronic inductor/gyrator circuit.
Surge protection.
Transient protection zeners.
Half- (20X0) or Full- (20X1) Wave Detection.
V.32 bis /V.34 compatible.
FCC Compatible.
Compatible with U. S. and Canadian dial up phone lines.
Supports leased-line operation.
PC board mountable App.
