CYG2011 Datasheet - Clare Inc.

Cybergate

CYG2011 Features

* Low distortion transformer signal coupling (0.01% max)

* Complete ring detector circuit

* Low power hookswitch

* Electronic inductor/gyrator circuit

* Surge protection

* Transient protection zeners

* Half- (20X0) or Full- (20X1) Wave Detectio

CYG2011 General Description

The CYG2000/2001/2010/2011/2020/2021/2030/2031 are Data Access Arrangement (DAA) modules featuring a 350V, 120mA, 15Ω relay used for hookswitch, optocoupler with minimum CTR of 33% for ring detection, and a low distortion transformer with 28.8kbps capabilities. Approvals * UL recognized fil.

CYG2011 Datasheet (71.00 KB)

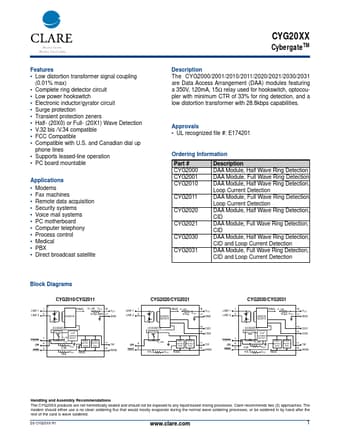

CYG2011 Datasheet Preview — Preview of CYG2011 PDF

Datasheet Details

Part number:

CYG2011

Manufacturer:

Clare Inc.

File Size:

71.00 KB

Description:

Cybergate.
