CYG23XX - CYBERGATE

Clare Inc.

The CYG23XX by Clare Inc. is a CYBERGATE. Below is the official datasheet preview.

📥 Download Datasheet

CYG23XX CYBERGATE by Clare Inc. - Datasheet Preview — Official preview page of the **CYG23XX** CYBERGATE datasheet (Clare Inc.).

Datasheet Details

Part number	CYG23XX
Manufacturer	Clare Inc.
File Size	93.00 KB
Description	CYBERGATE
Datasheet	CYG23XX_ClareInc..pdf

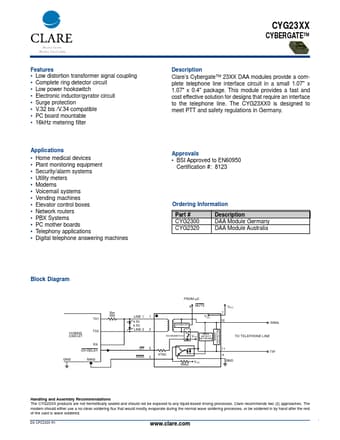

Additional preview pages of the CYG23XX datasheet.

CYG23XX Product details

Description

Clare’s CybergateTM 23XX DAA modules provide a complete telephone line interface circuit in a small 1.07" x 1.07" x 0.4" package. Home medical devices Plant monitoring equipment Security/alarm systems Utility meters Modems Voicemail syst

Features

Low distortion transformer signal coupling.
Complete ring detector circuit.
Low power hookswitch.
Electronic inductor/gyrator circuit.
Surge protection.
V.32 bis /V.34 compatible.
PC board mountable.
16kHz metering filter.
