CYG2300 Datasheet - Clare Inc.

CYBERGATE

CYG2300 Features

* Low distortion transformer signal coupling

* Complete ring detector circuit

* Low power hookswitch

* Electronic inductor/gyrator circuit

* Surge protection

* V.32 bis /V.34 compatible

* PC board mountable

* 16kHz metering filter Desc

CYG2300 General Description

Clare’s CybergateTM 23XX DAA modules provide a complete telephone line interface circuit in a small 1.07" x 1.07" x 0.4" package. This module provides a fast and cost effective solution for designs that require an interface to the telephone line. The CYG23XX0 is designed to meet PTT and safety regul.

CYG2300 Datasheet (93.00 KB)

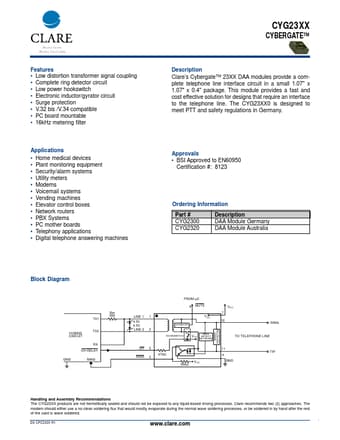

CYG2300 Datasheet Preview — Preview of CYG2300 PDF

Datasheet Details

Part number:

CYG2300

Manufacturer:

Clare Inc.

File Size:

93.00 KB

Description:

Cybergate.
