* q International standard package q Axial wire connexions q Planar glassivated chips Applications q Low power rectifiers q Field supply for DC motors q Power supplies q High voltage rectifiers Advantages q Space and weight savings q Simple PCB mounting q Improved temperature and power cycling q Reduc
DSA2-12A
IXYS
34.51 KB

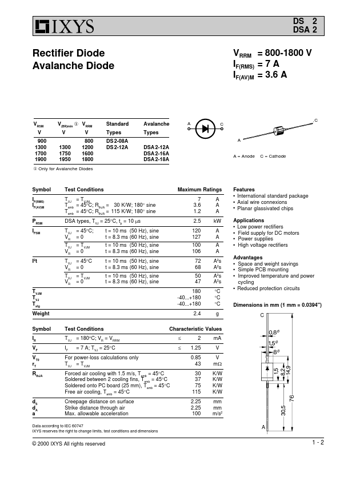

Rectifier diode.
Rectifier Diode Avalanche Diode
DS 2 DSA 2
VRRM = 800-1800 V IF(RMS) = 7 A IF(AV)M = 3.6 A
VRSM V
V x(BR)minÿ VRRM VV
900 1300 1700 1900
1300 175.
