DSA20C100PN - Schottky Diode

DSA20C100PN Description

Schottky Diode High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA20C100PN 1 2 3 DSA20C100PN VRRM I FAV VF .
D = Diode S = Schottky Diode A = low VF 20 = Current Rating [A] C = Common Cathode 100 = Reverse Voltage [V] PN = TO-220ABFP (3) Ordering Standard O.

DSA20C100PN Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA20C100PN Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-220FP
* Isolation Voltage: 2500 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Base plate: Plast

📥 Download Datasheet

Preview of DSA20C100PN PDF

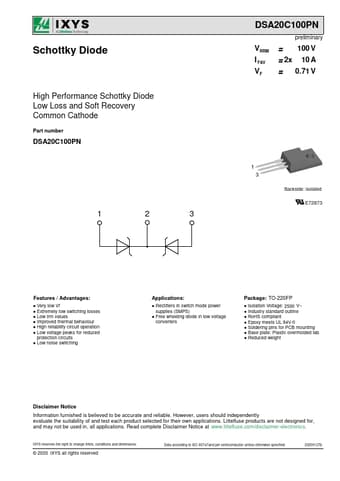

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA20C100PN
Manufacturer
IXYS
File Size
164.83 KB
Datasheet
DSA20C100PN-IXYS.pdf
Description
Schottky Diode
