DSA20C150PN - Schottky Diode

DSA20C150PN Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSA20C150PN 1 23 DSA20C150PN VRRM I FAV V.

DSA20C150PN Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSA20C150PN Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-220FP
* Isolation Voltage: 2500 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Base plate: Plast

📥 Download Datasheet

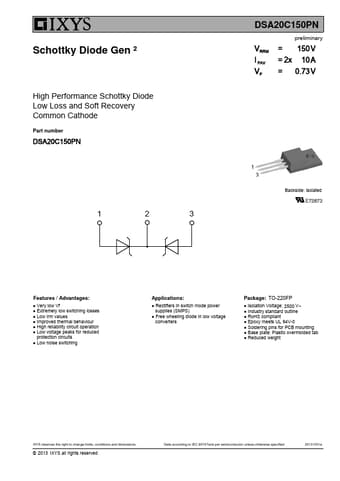

Preview of DSA20C150PN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSA20C150PN
Manufacturer
IXYS
File Size
88.10 KB
Datasheet
DSA20C150PN-IXYS.pdf
Description
Schottky Diode
