DSA240X200NA, High-Performance Schottky Diode

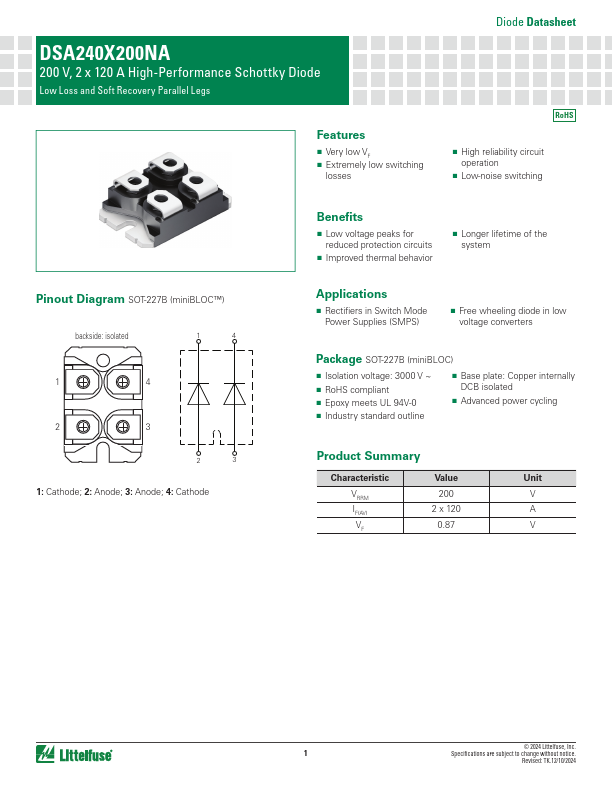

DSA240X200NA 200 V, 2 x 120 A High-Performance Schottky Diode Low Loss and Soft Recovery Parallel Legs .

datasheet Preview Page 1 from Datasheet4u.com

DSA240X200NA-IXYS.pdf

DSA240X200NA Datasheet Preview — Preview of DSA240X200NA PDF

Datasheet Details

Part number:

DSA240X200NA

Manufacturer:

IXYS

File Size:

454.51 KB

Description:

High-Performance Schottky Diode

Features

* Very low VF
* Extremely low switching losses Diode Datasheet RoHS
* High reliability circuit operation
* Low-noise switching Pinout Diagram SOT-227B (miniBLOC™) backside: isolated 1 4 1 4 2 3 2 3 1: Cathode; 2: Anode; 3: Anode; 4: Cathode Beneﬁts
* Low voltage peak

Applications

* Rectiﬁers in Switch Mode Power Supplies (SMPS)
* Free wheeling diode in low voltage converters Package SOT-227B (miniBLOC)
* Isolation voltage: 3000 V ~
* RoHS compliant
* Epoxy meets UL 94V-0
* Industry standard outline
* Base plate: Copper internally DCB isolated
