DSA240X150NA Schottky Diode

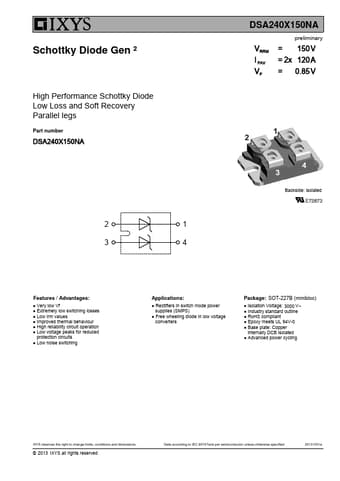

📥 Download Datasheet  Datasheet Preview Page 1

Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Parallel legs Part number DSA240X150NA 21 34 DSA240X150NA VRRM I FAV.

📥 Download Datasheet

Preview of DSA240X150NA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DSA240X150NA
Manufacturer
IXYS
File Size
108.55 KB
Datasheet
DSA240X150NA-IXYS.pdf
Description
Schottky Diode

Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: SOT-227B (minibloc)
* Isolation Voltage: 3000 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Base plate: Copper internally DCB isolated
