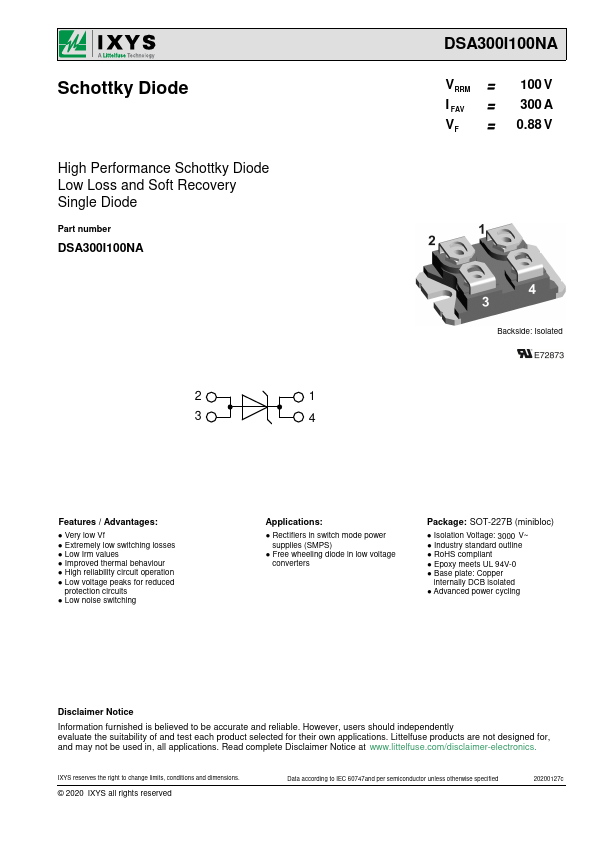

DSA300I100NA - Schottky Diode

IXYS

DSA300I100NA Datasheet Preview — Preview of DSA300I100NA PDF

Datasheet Details

Part number	DSA300I100NA
Manufacturer	IXYS
File Size	542.16 KB
Description	Schottky Diode
Datasheet	DSA300I100NA-IXYS.pdf

DSA300I100NA Product details

Description

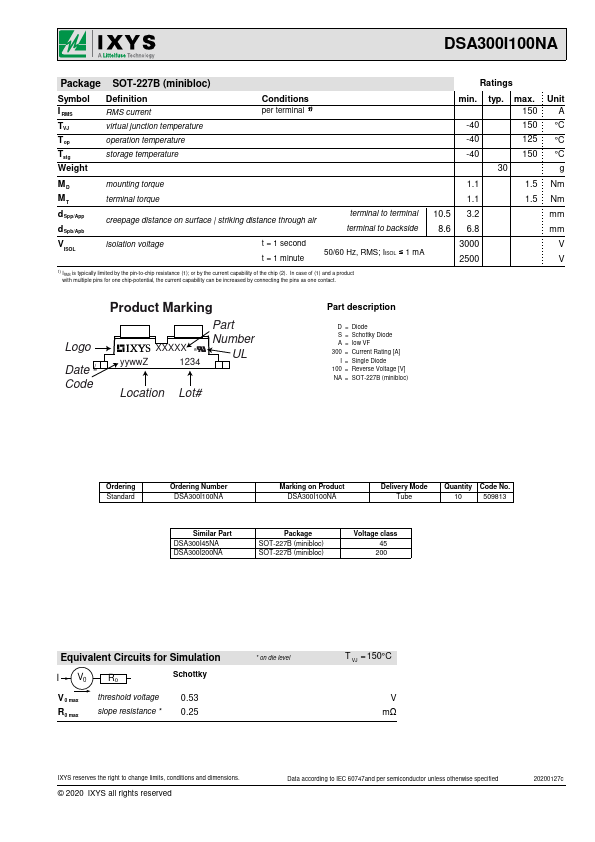

D = Diode S = Schottky Diode A = low VF 300 = Current Rating [A] I = Single Diode 100 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DSA300I100NA Marking on Product DSA300I100NA Delivery Mode Tube Quantity Code No.10 509813 Similar Part DSA300I45NA DSA300I200NA Package SOT-227B (minibloc) SOT-227B (minibloc) Voltage class 45 200 Equivalent Circuits for Simulation I V0 R0 Schottky V 0 max R0 max threshold voltage slope resistance 0.53 0.25

Features

/ Advantages:.
Very low Vf.
Extremely low switching losses.
Low Irm values.
Improved thermal behaviour.
High reliability circuit operation.
Low voltage peaks for reduced protection circuits.
Low noise switching.
