DSA300I45NA Datasheet - IXYS

High Performance Schottky Diode

DSA300I45NA Features

* / Advantages:

* Very low Vf

* Extremely low switching losses

* Low Irm values

* Improved thermal behaviour

* High reliability circuit operation

* Low voltage peaks for reduced protection circuits

* Low noise switching Applications:

* Rectifiers in switch mode power s

DSA300I45NA General Description

D = Diode S = Schottky Diode A = low VF 300 = Current Rating [A] I = Single Diode 45 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DSA300I45NA Marking on Product DSA300I45NA Delivery Mode Tube Quantity Code No. 10 511251 Similar Part DSA300I100NA DSA300I200.

DSA300I45NA Datasheet (552.59 KB)

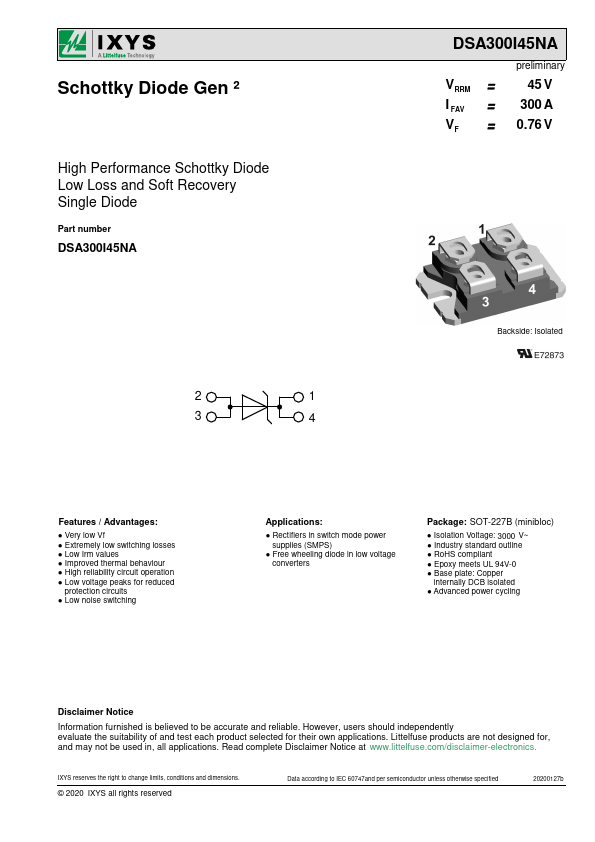

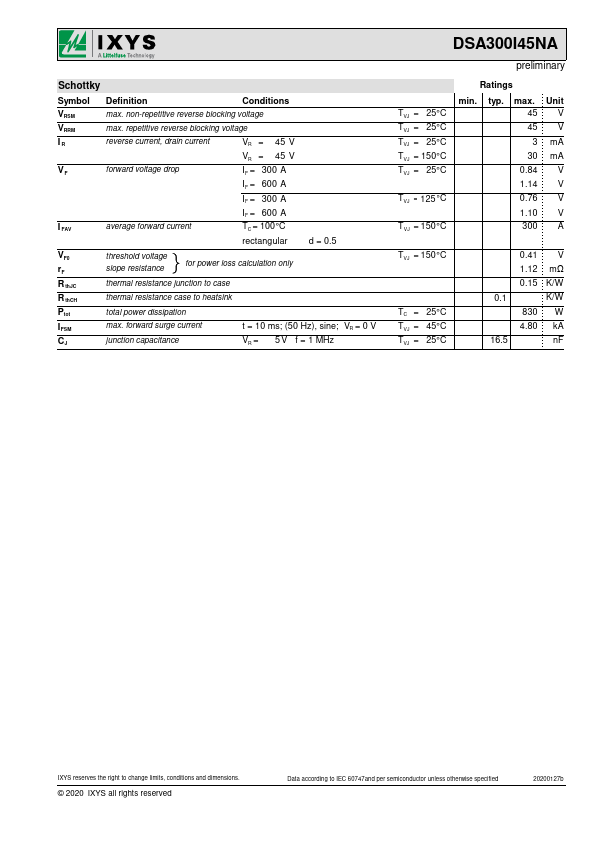

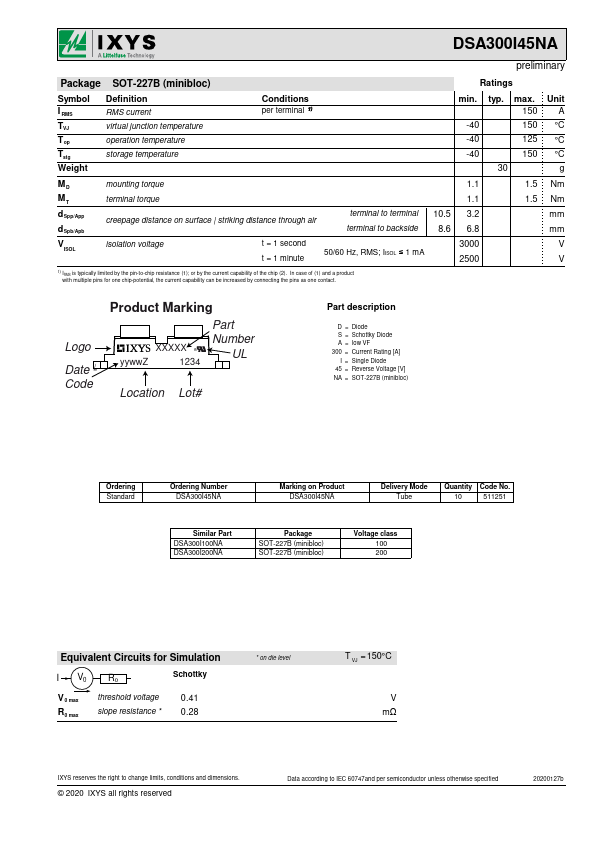

DSA300I45NA Datasheet Preview — Preview of DSA300I45NA PDF

Datasheet Details

Part number:

DSA300I45NA

Manufacturer:

IXYS

File Size:

552.59 KB

Description:

High performance schottky diode.
Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Single Diode Part number DSA300I45NA 2 1 3 4 DSA300I45NA VRRM = .
