IXA20RG1200DHGLB - XPT IGBT

IXA20RG1200DHGLB Description

XPT IGBT IXA20RG1200DHGLB VCES = I C25 = V = CE(sat) advanced 1200 V 32 A 1.8 V ISOPLUS™ Surface Mount Power Device Boost Topology Boost/Brake .

IXA20RG1200DHGLB Features

* / Advantages:
* XPT IGBT - low saturation voltage - positive temperature coefficient for easy paralleling - fast switching - short tail current for optimized performance in resonant circuits
* Sonic™ diode - fast reverse recovery - low operating forward voltage - low leakage current - low te

IXA20RG1200DHGLB Applications

* AC drives - brake chopper
* PFC - boost chopper
* Switched reluctance drives Package: SMPD
* Isolation Voltage: 3000 V~
* Industry convenient outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Backside: DCB ceramic
* Reduce

📥 Download Datasheet

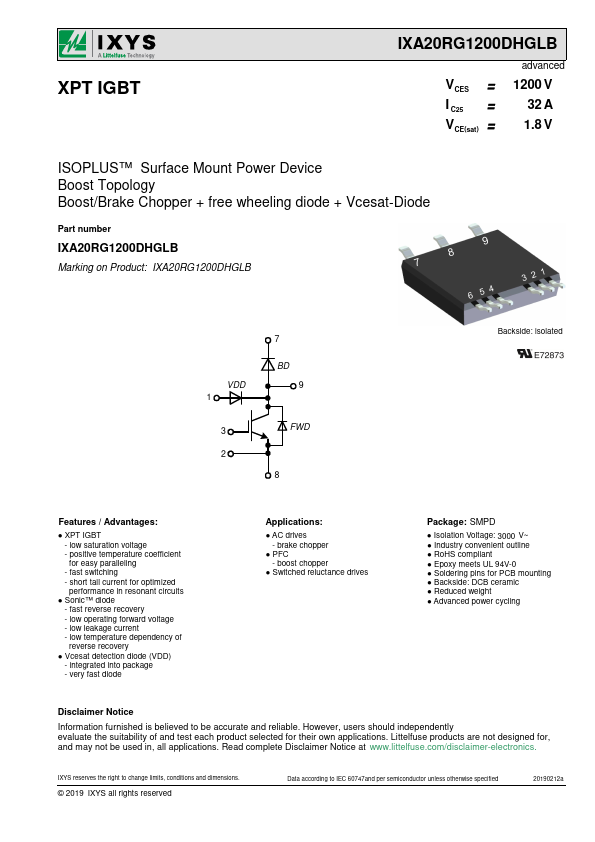

Preview of IXA20RG1200DHGLB PDF

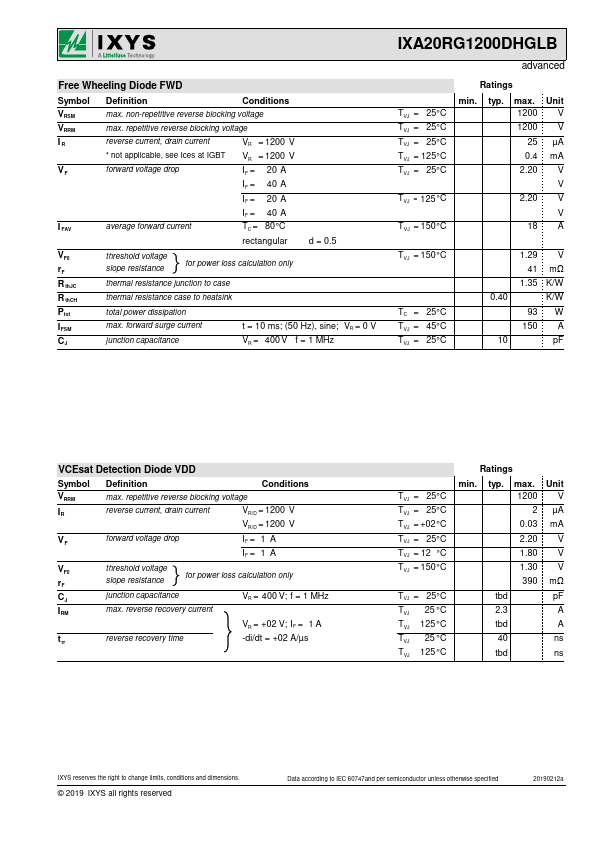

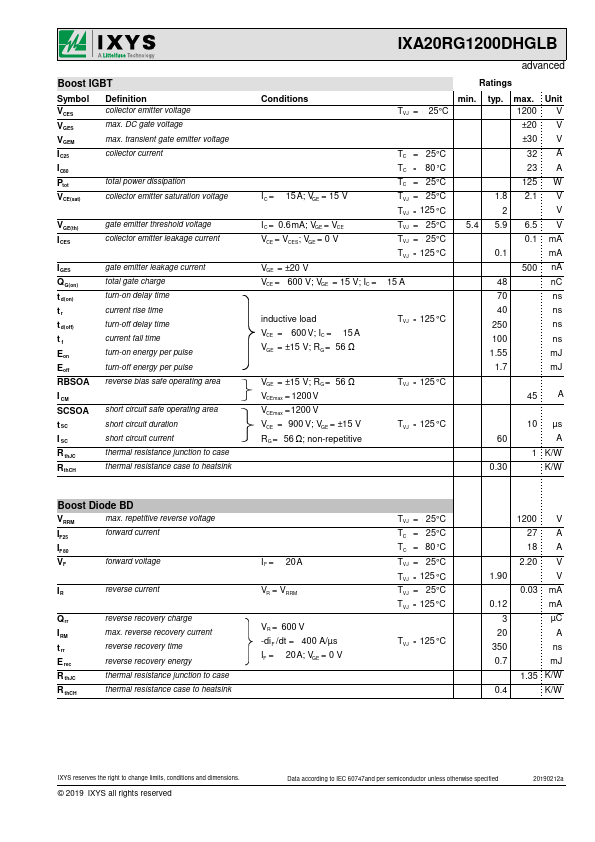

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXA20RG1200DHGLB
Manufacturer
IXYS
File Size
249.34 KB
Datasheet
IXA20RG1200DHGLB-IXYS.pdf
Description
XPT IGBT
