IXA30RG1200DHGLB Datasheet - IXYS

IXA30RG1200DHGLB, XPT IGBT

XPT IGBT IXA30RG1200DHGLB VCES = I C25 = V = CE(sat) advanced 1200 V 43 A 1.8 V ISOPLUS™ Surface Mount Power Device Boost Topology Boost/Brake .
 datasheet Preview Page 1 from Datasheet4u.com

IXA30RG1200DHGLB-IXYS.pdf

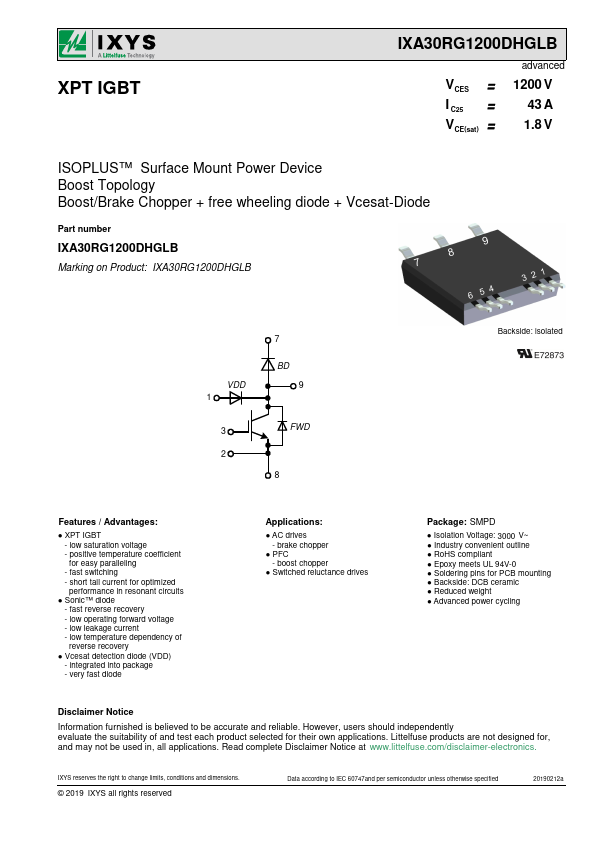

Preview of IXA30RG1200DHGLB PDF

Datasheet Details

Part number:

IXA30RG1200DHGLB

Manufacturer:

IXYS

File Size:

240.37 KB

Description:

XPT IGBT

Features

* / Advantages:
* XPT IGBT - low saturation voltage - positive temperature coefficient for easy paralleling - fast switching - short tail current for optimized performance in resonant circuits
* Sonic™ diode - fast reverse recovery - low operating forward voltage - low leakage current - low te

Applications

* AC drives - brake chopper
* PFC - boost chopper
* Switched reluctance drives Package: SMPD
* Isolation Voltage: 3000 V~
* Industry convenient outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Backside: DCB ceramic
* Reduce
