IXA37IF1200HJ Datasheet - IXYS

IXA37IF1200HJ, XPT IGBT

XPT IGBT Copack Part number IXA37IF1200HJ IXA37IF1200HJ VCES = I C25 = V = CE(sat) 1200 V 58 A 1.8 V (G) 1 2 (C) 3 (E) Backside: isolated Fe.

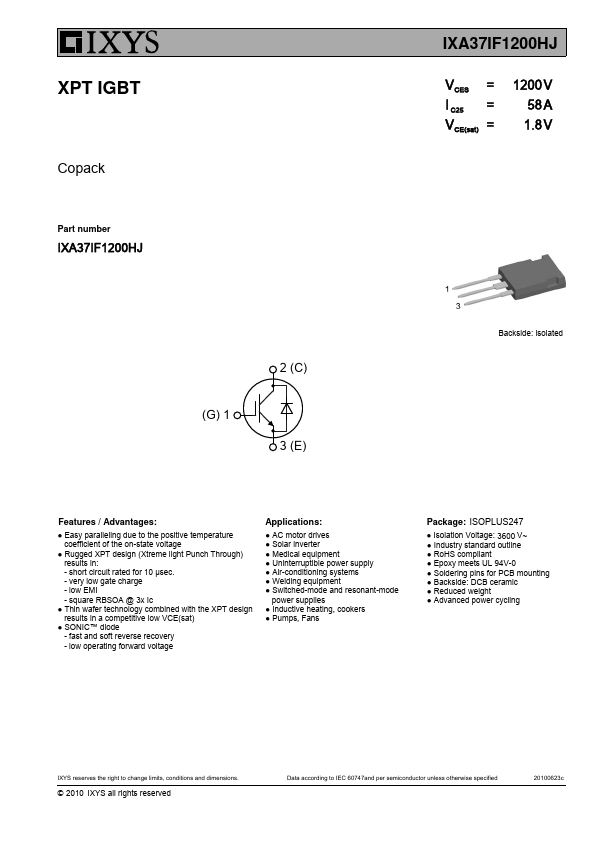

datasheet Preview Page 1 from Datasheet4u.com

IXA37IF1200HJ_IXYS.pdf

IXA37IF1200HJ Datasheet Preview — Preview of IXA37IF1200HJ PDF

Datasheet Details

Part number:

IXA37IF1200HJ

Manufacturer:

IXYS

File Size:

194.29 KB

Description:

XPT IGBT

Features

* / Advantages:
* Easy paralleling due to the positive temperature coefficient of the on-state voltage
* Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 3x Ic
* Thin wafer technology combined wi

Applications

* AC motor drives
* Solar inverter
* Medical equipment
* Uninterruptible power supply
* Air-conditioning systems
* Welding equipment
* Switched-mode and resonant-mode power supplies
* Inductive heating, cookers
* Pumps, Fans Package: ISOPLUS247
* Isolation V
