IXA40PG1200DHGLB XPT IGBT

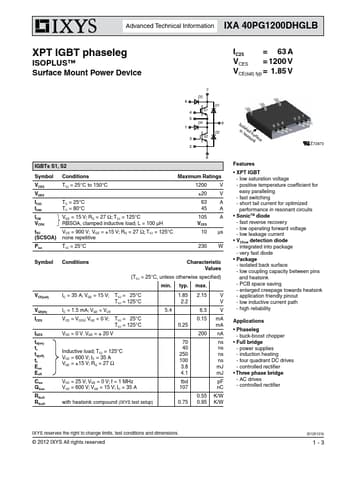

Advanced Technical Information IXA 40PG1200DHGLB XPT IGBT phaseleg ISOPLUS™ Surface Mount Power Device IC25 = 63 A VCES = 1200 V V = CE(sat) typ 1.85 V 7 D3 6 D1 4 S1 5 D4 9 1 D2 3 S2 2 8 IGBTs S1, S2 Symbol VCES VGES IC25 IC80 ICM VCEK tSC (SCSOA) Ptot Conditions Maximum Ratings TVJ = 25°C to 150°C 1200 V ±20 V TC = 25°C TC = 80°C VGE = 15 V; RG = 27 W; TVJ = 125°C RBSOA, clamped inductive load; L = 100 µH VCE = 900 V; VGE = ±15 V; RG = 27 W; TVJ = 125°C none repetitiv.

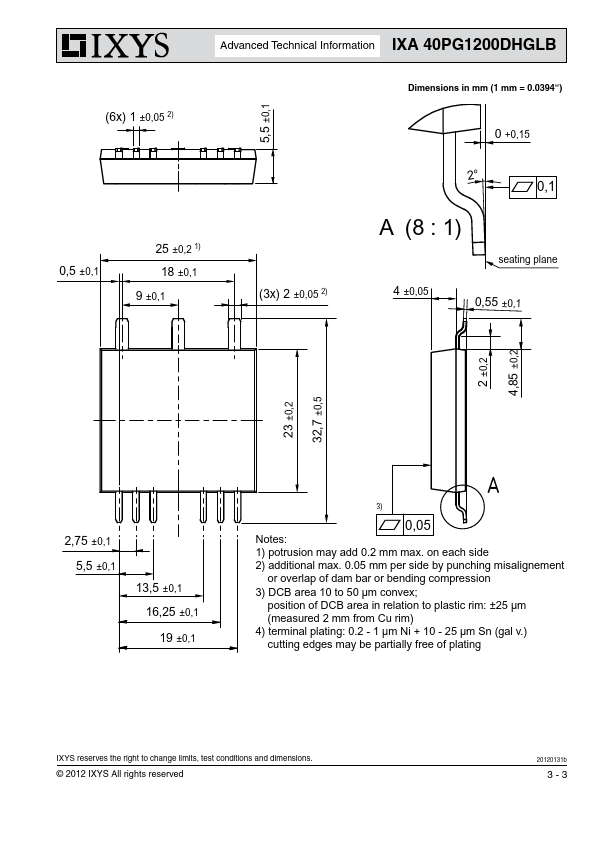

IXA40PG1200DHGLB Features

* XPT IGBT - low saturation voltage - positive temperature coefficient for easy paralleling - fast switching - short tail current for optimized performance in resonant circuits

* SonicTM diode - fast reverse recovery - low operating forward voltage - low leakage current

* VCE
