IXA40RG1200DHGLB Datasheet - IXYS

IXA40RG1200DHGLB, XPT IGBT

IXA40RG1200DHGLB tentative XPT IGBT VCES I C25 = = 1200 V 61 A 1.8 V VCE(sat) = ISOPLUS™ Surface Mount Power Device Boost Topology XPT IGBT Part.

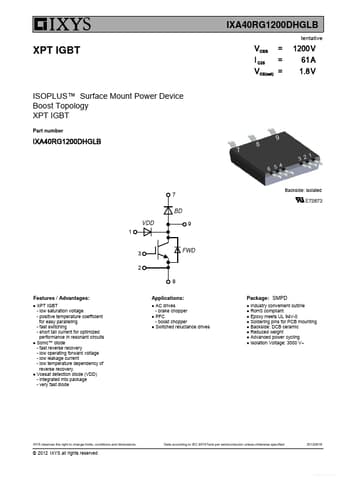

 datasheet Preview Page 1 from Datasheet4u.com

IXA40RG1200DHGLB_IXYS.pdf

Preview of IXA40RG1200DHGLB PDF

Datasheet Details

Part number:

IXA40RG1200DHGLB

Manufacturer:

IXYS

File Size:

187.48 KB

Description:

XPT IGBT

Features

* / Advantages:
* XPT IGBT - low saturation voltage - positive temperature coefficient for easy paralleling - fast switching - short tail current for optimized performance in resonant circuits
* Sonic™ diode - fast reverse recovery - low operating forward voltage - low leakage current - low te

Applications

* AC drives - brake chopper
* PFC - boost chopper
* Switched reluctance drives Package: SMPD
* Industry convenient outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Backside: DCB ceramic
* Reduced weight
* Advanced power cyc
