IXA45IF1200HB, XPT IGBT

IXA45IF1200HB XPT IGBT Copack C (2) I C25 = = VCES VCE(sat)typ = 78 A 1200 V 1.8 V Part number IXA45IF1200HB (G) 1 E (3) .

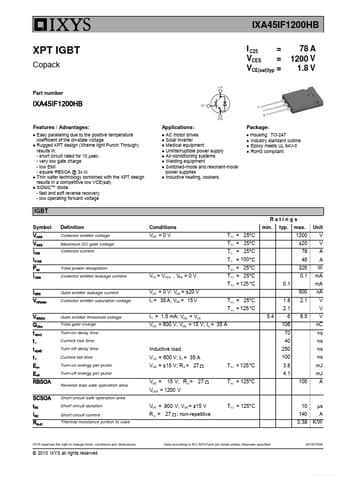

datasheet Preview Page 1 from Datasheet4u.com

IXA45IF1200HB_IXYS.pdf

IXA45IF1200HB Datasheet Preview — Preview of IXA45IF1200HB PDF

Datasheet Details

Part number:

IXA45IF1200HB

Manufacturer:

IXYS

File Size:

154.97 KB

Description:

XPT IGBT

Features

* / Advantages:
* Easy paralleling due to the positive temperature coefficient of the on-state voltage
* Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 3x Ic
* Thin wafer technology combined wi

Applications

* AC motor drives
* Solar inverter
* Medical equipment
* Uninterruptible power supply
* Air-conditioning systems
* Welding equipment
* Switched-mode and resonant-mode power supplies
* Inductive heating, cookers Package:
* Housing: TO-247
* rIndustry standard
