IXA4IF1200TC Datasheet - IXYS

IXA4IF1200TC, XPT IGBT

IXA4IF1200TC preliminary XPT IGBT VCES I C25 = = 1200 V 9A 1.8 V VCE(sat) = Copack Part number IXA4IF1200TC 2 (C) (G) 1 3 (E) .

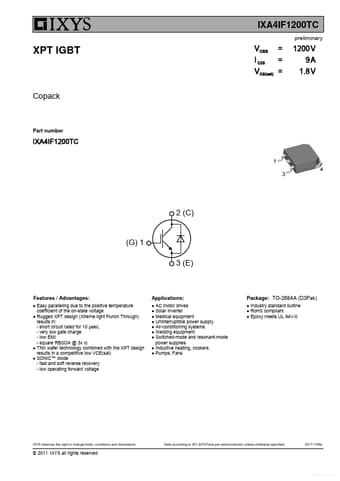

datasheet Preview Page 1 from Datasheet4u.com

IXA4IF1200TC_IXYS.pdf

IXA4IF1200TC Datasheet Preview — Preview of IXA4IF1200TC PDF

Datasheet Details

Part number:

IXA4IF1200TC

Manufacturer:

IXYS

File Size:

117.61 KB

Description:

XPT IGBT

Features

* / Advantages:
* Easy paralleling due to the positive temperature coefficient of the on-state voltage
* Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 3x Ic
* Thin wafer technology combined wi

Applications

* AC motor drives
* Solar inverter
* Medical equipment
* Uninterruptible power supply
* Air-conditioning systems
* Welding equipment
* Switched-mode and resonant-mode power supplies
* Inductive heating, cookers
* Pumps, Fans Package: TO-268AA (D3Pak)
* Indus
