IXFA130N15X3 Power MOSFET

X3-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXFA130N15X3 D G S Symbol VDSS VDGR VGSS VGSM ID25 IL(RMS) IDM IA EAS dv/dt PD TJ TJM Tstg TL dT/dt TSOLD FC Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 150 V 150 V 20 V 30 V TC = 25C (Chip Capability) External Lead Current Limit TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C 130 120 230.

IXFA130N15X3 Features

* International Standard Package

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFA130N15X3 Datasheet (180.68 KB)

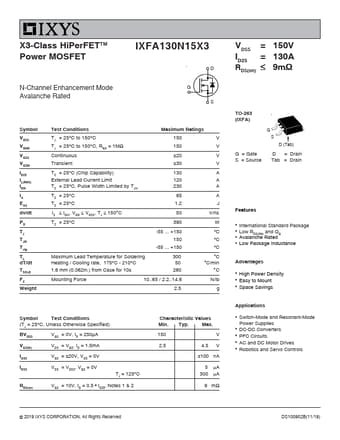

IXFA130N15X3 Datasheet Preview — Preview of IXFA130N15X3 PDF

Datasheet Details

Part number:

IXFA130N15X3

Manufacturer:

IXYS

File Size:

180.68 KB

Description:

Power mosfet.
