IXFA90N20X3 N-Channel Power MOSFET

X3-Class HiPerFETTM Power MOSFET IXFA90N20X3 N-Channel Enhancement Mode Avalanche Rated Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL dT/dt TSOLD FC Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 200 V 200 V 20 V 30 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C 90 220 45 1.5 20 390 -55 +150 150 -55 +150 A A A J V/ns W C C C .

IXFA90N20X3 Features

* International Standard Package

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFA90N20X3 Datasheet (216.21 KB)

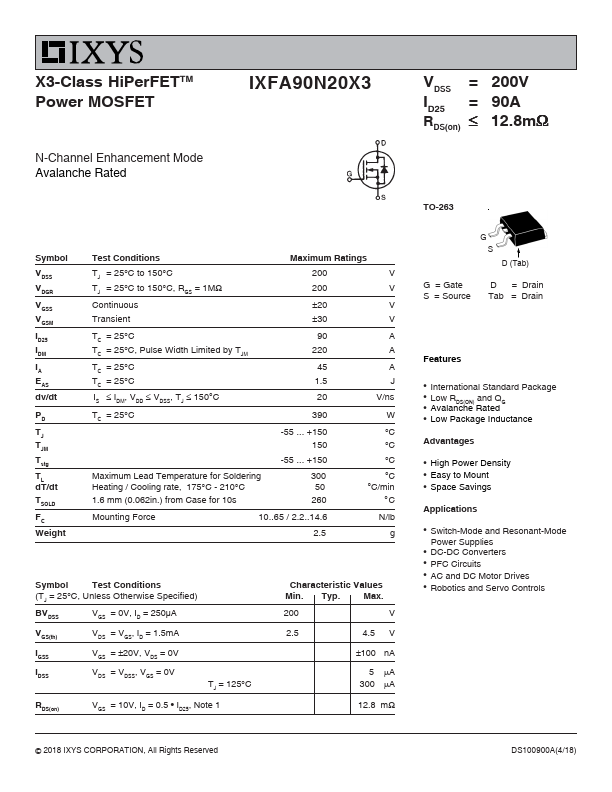

IXFA90N20X3 Datasheet Preview — Preview of IXFA90N20X3 PDF

Datasheet Details

Part number:

IXFA90N20X3

Manufacturer:

IXYS

File Size:

216.21 KB

Description:

N-channel power mosfet.
