IXTA10N60P Power MOSFET

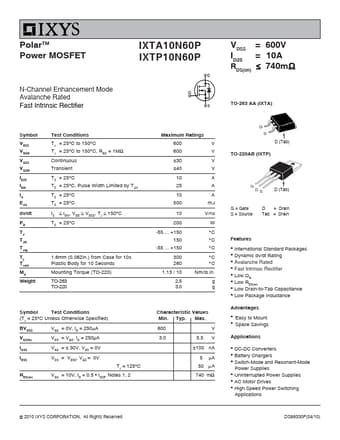

PolarTM Power MOSFET IXTA10N60P IXTP10N60P N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier VDSS = 600V ID25 = 10A RDS(on) ≤ 740mΩ TO-263 AA (IXTA) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL Tsold Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6mm (0.062in.) from Case for 10s Plastic Body .

IXTA10N60P Features

* z International Standard Packages z Dynamic dv/dt Rating z Avalanche Rated z Fast Intrinsic Rectifier z Low QG z Low RDS(on) z Low Drain-to-Tab Capacitance z Low Package Inductance Advantages z Easy to Mount z Space Savings Applications z DC-DC Converters z Battery Chargers z Switch-Mode and Resonan
