* Optimized for 5-20kHz Switching
* Square RBSOA
* Anti-Parallel Diode
* Avalanche Rated
* Short Circuit Capability
* International Standard Package Advantages
* High Power Density
* Extremely Rugged
* Low Gate Drive Requirement Symbol Test Conditions (TJ = 25

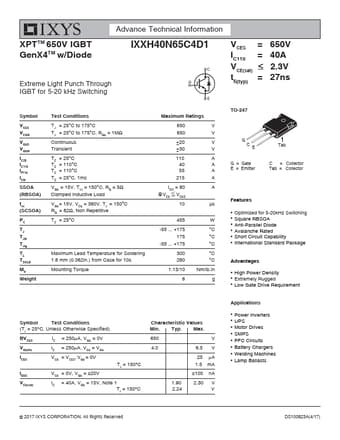

IXXH40N65C4D1 Datasheet (240.20 KB)
IXXH40N65C4D1
IXYS
240.20 KB
Extreme light punch through igbt.
Advance Technical Information
XPTTM 650V IGBT GenX4TM w/Diode
IXXH40N65C4D1
Extreme Light Punch Through IGBT for 5-20 kHz Switching
VCES = 650V
I.
